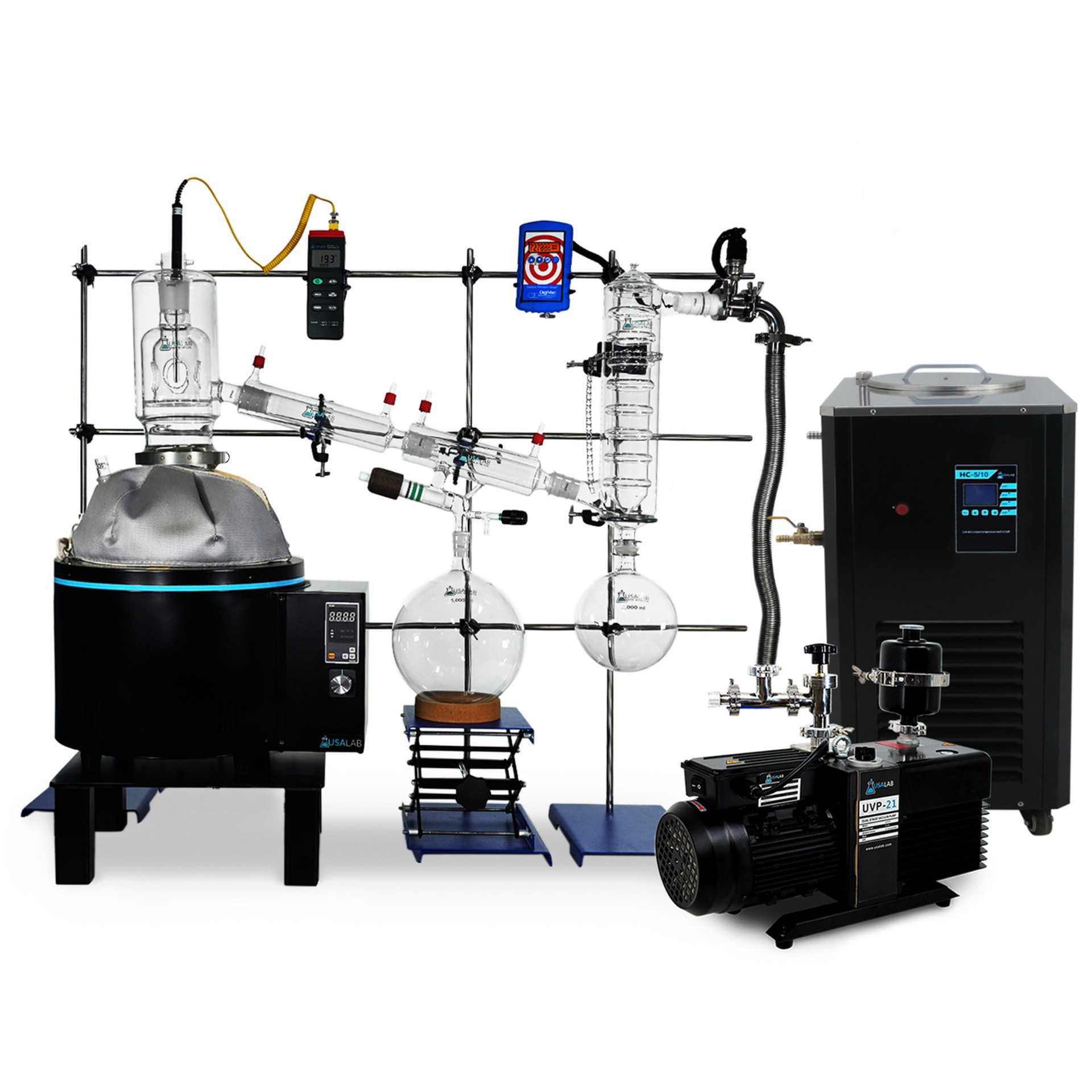

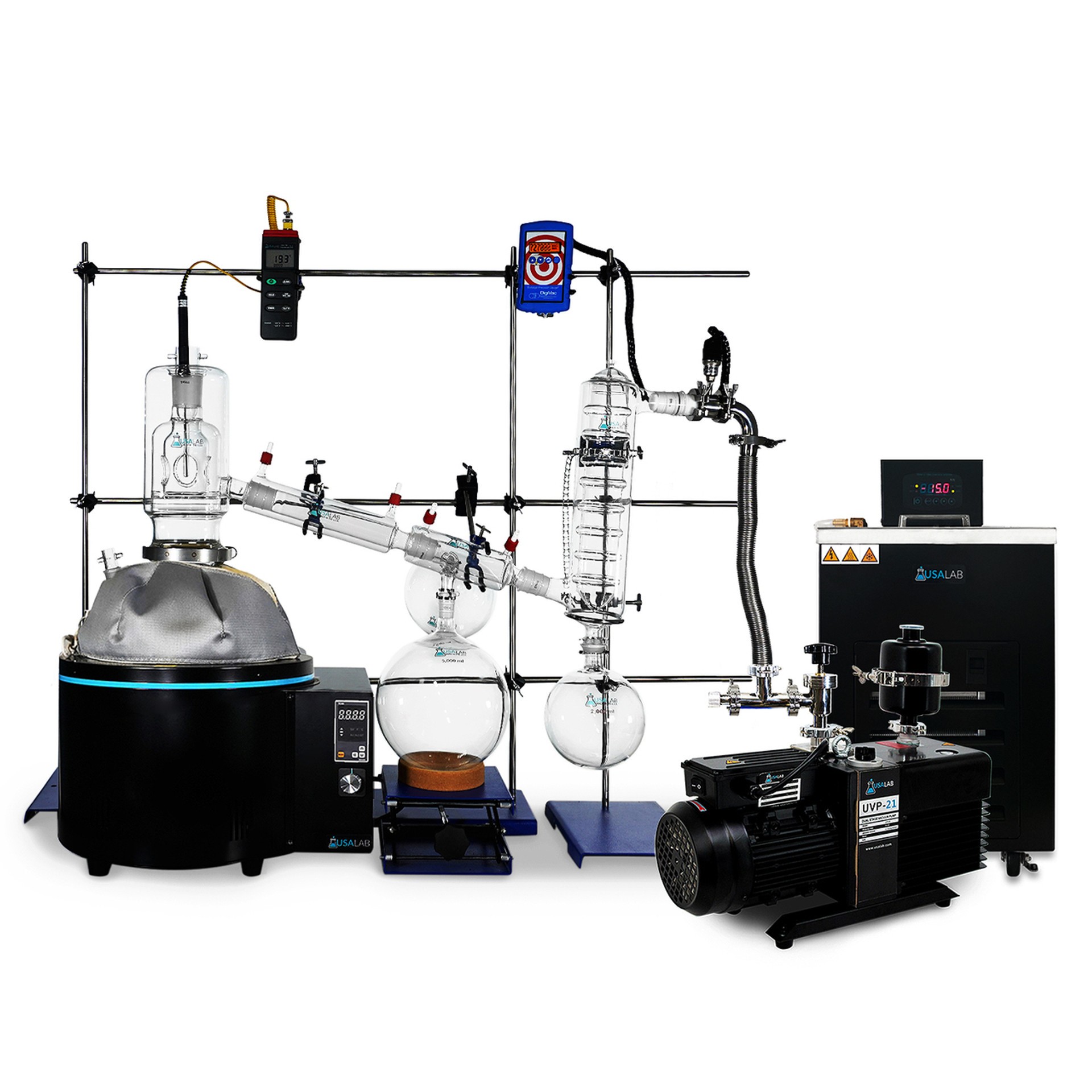

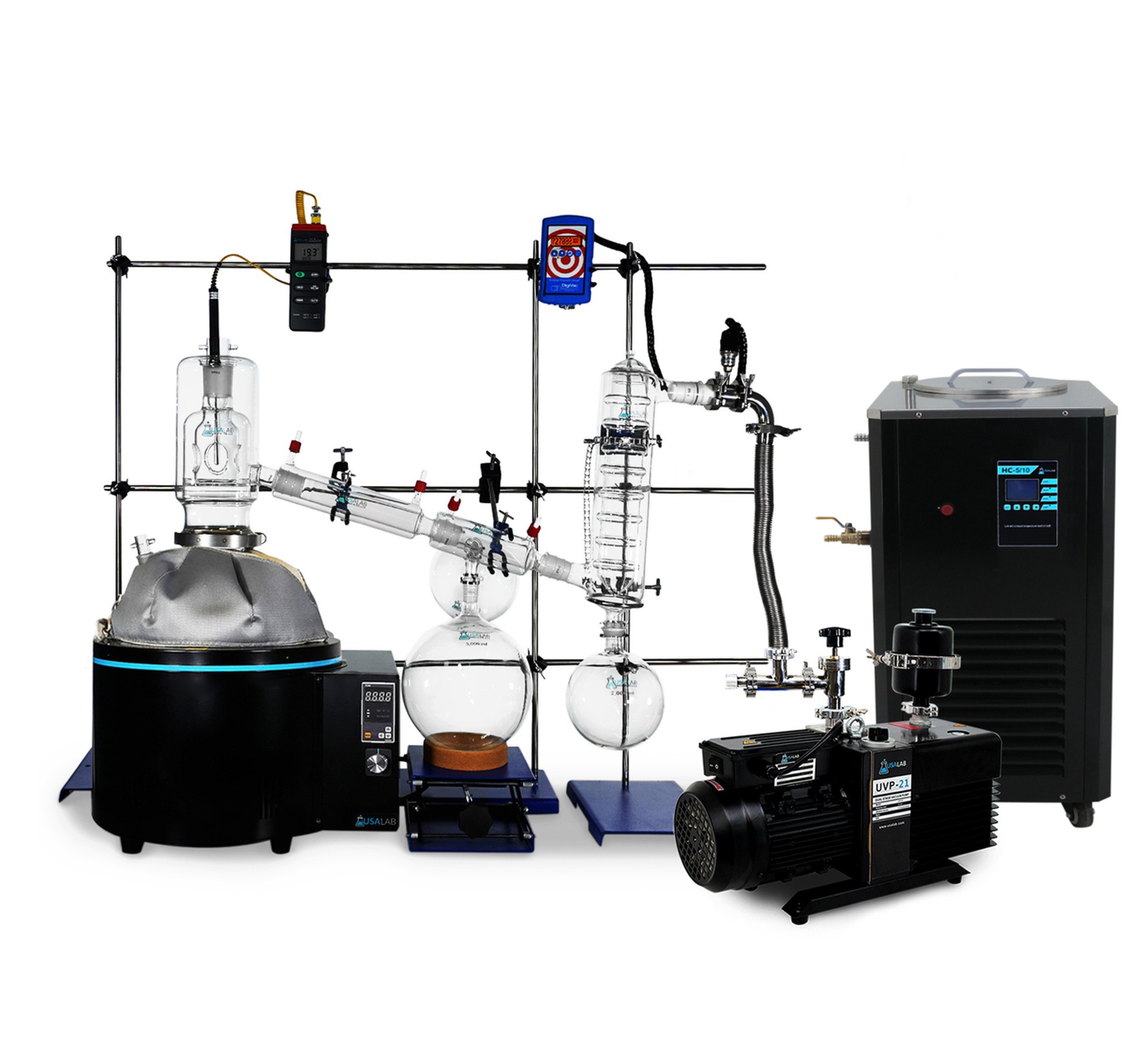

USA Lab 22L Full Bore Short Path Distillation Kit
The USA Lab 22L Full Bore Short Path Distillation Kit is crafted from high-quality USA-made glass and features an extra-wide 100 mm distillation head designed for maximum efficiency, high throughput, and consistent results.
This turnkey system includes a 100 mm distillation head, a 34/45 vacuum take-off adapter for seamless switching between receiving flasks, and a 34/45 cold trap to handle large volumes of condensing. The kit also comes equipped with full-bore connections, ensuring strong vacuum performance throughout the process.
Engineered for reliability and production, this lattice-supported glass kit combines excellent quality with exceptional value.
|
SPECIFICATIONS |
||
|
Model |
A-SD22L-N4TK |
|
|
Flask Size |
22L / 22000ML |
|
|
Flask Joint Sizes |
100MM Flange Main | 24/40F Side |
|
|
Distillation Head Joint Sizes |
100MM Flange Bottom | 45/50F Top | 34/45M Side |
|
|
Condenser Joint Sizes |
34/45F Inlet | 34/45M Outlet |
|
|
Isolation Adapter Joint Sizes |
34/45F Inlet | 34/45M Outlet | 24/40M Bottom Discharge |
|
|
Cold Trap Joint Sizes |
34/45F Inlet | 34/45F Outlet |
|
|
Optimal Capacity |
7,000-12,000mL |
|
|
Batch Time |
4-10 Hours |
|
|
Main Body Flow Rate |
2,000-4,000 grams/hour |
|
|
Foot Print |
80x24x40(inch) Including Pump / Chiller |
|
|

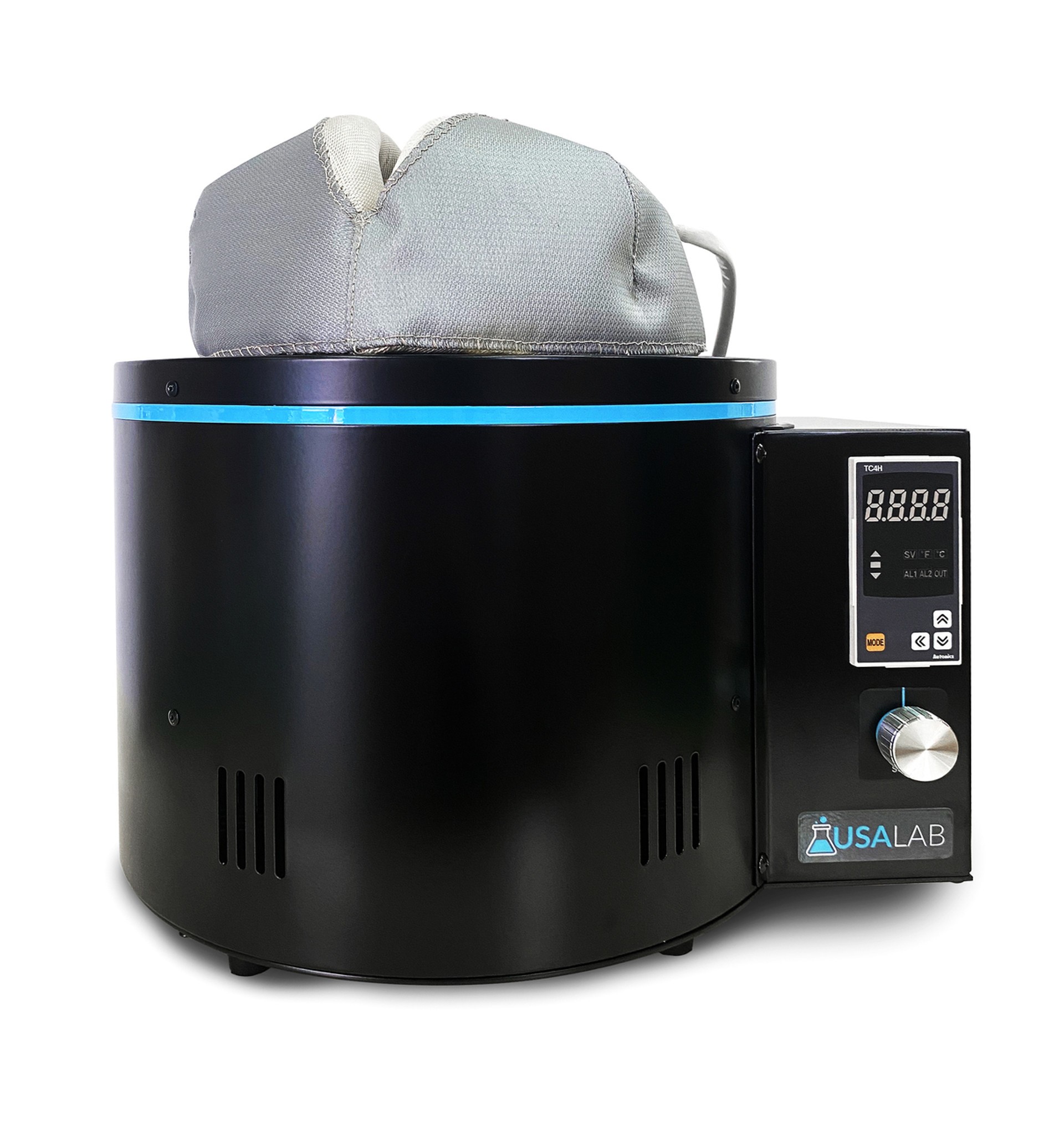

USA-HM-12L Heating Mantle Specs |
300°C | 3000RPM | 1400W |
|
|

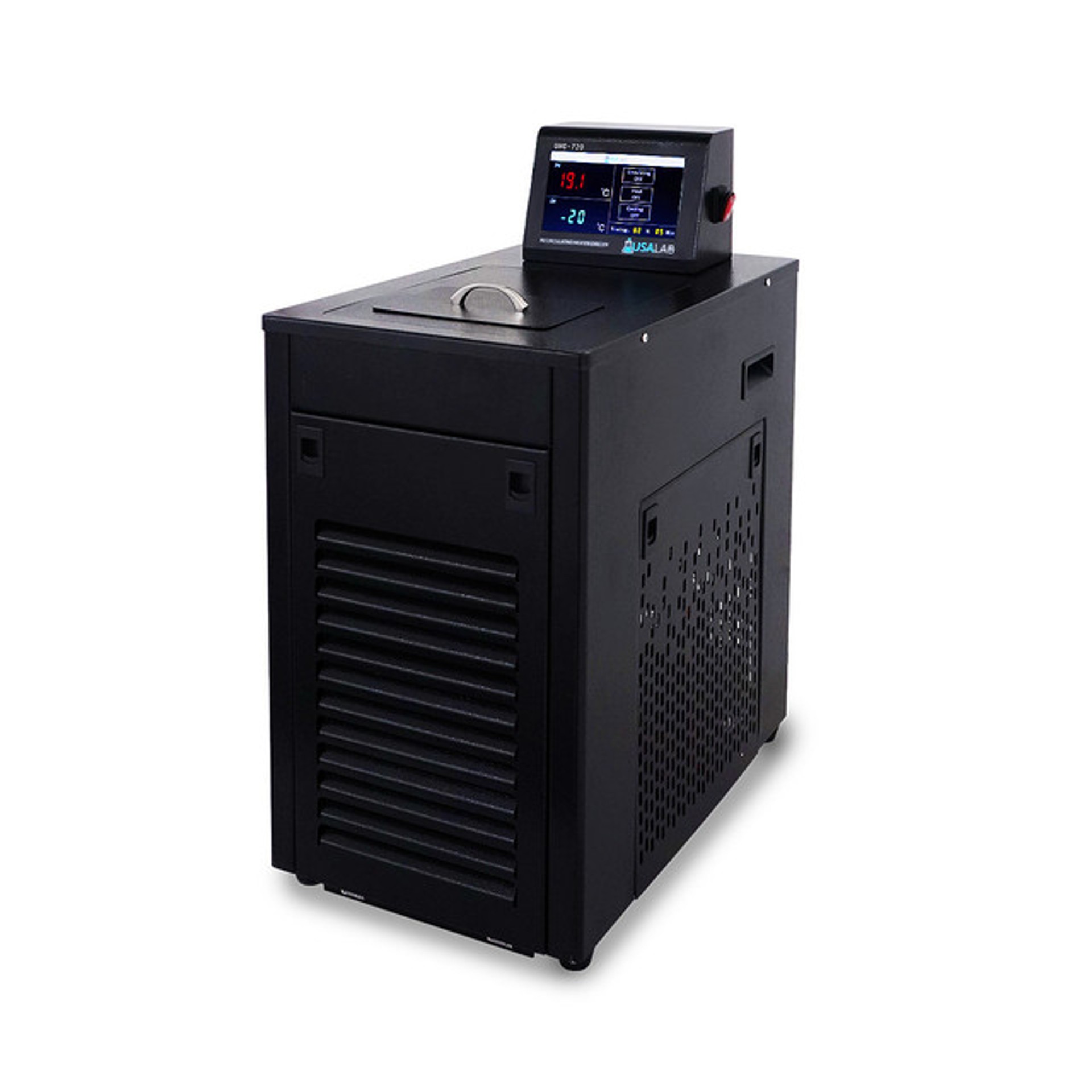

USA-RHC-7L Heater Chiller Specs |
-20°C to 150°C | 6.8L | 1.5Kw Heat |
|
|

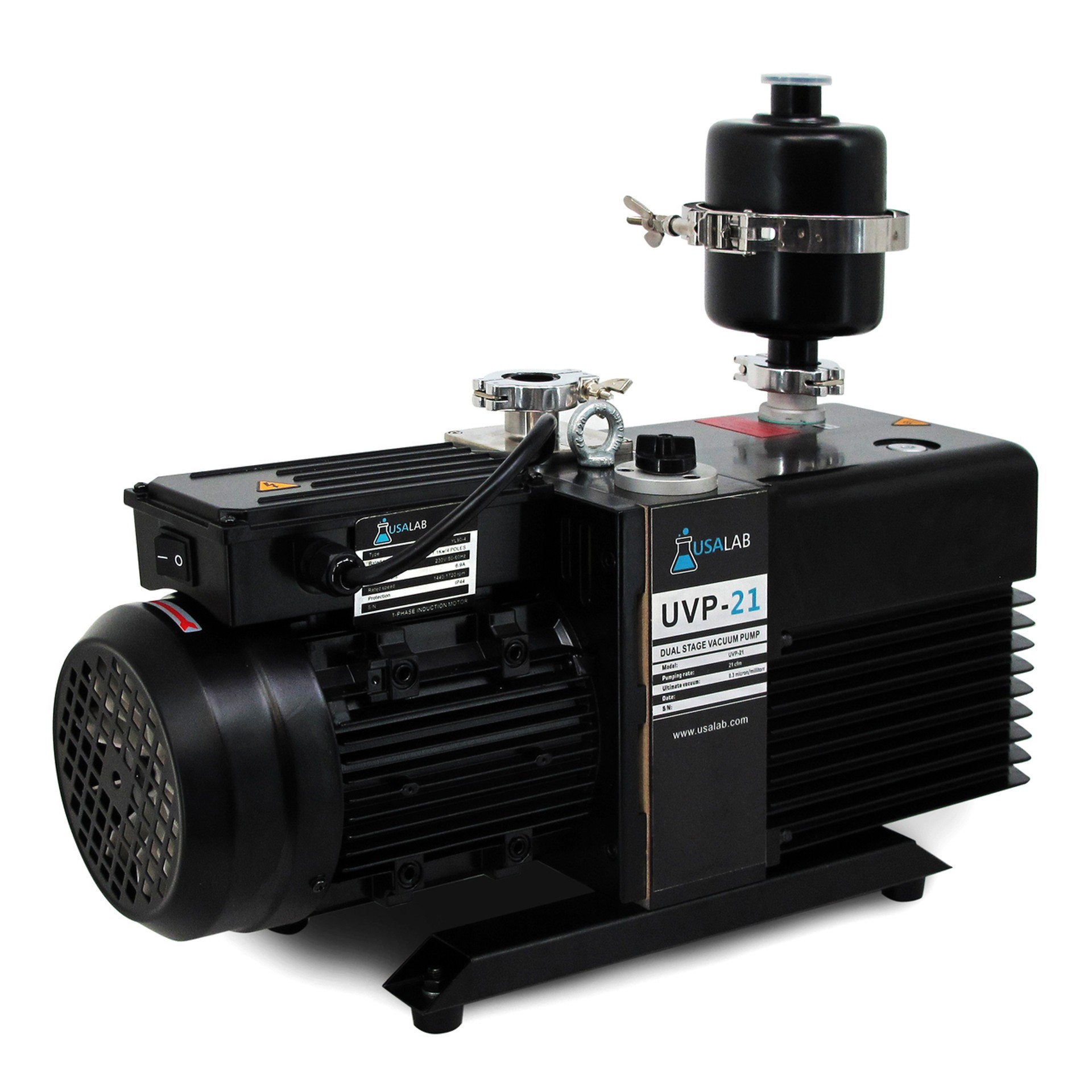

UVP-21 Vacuum Pump Specs |
21CFM | 0.3 Micron | UL Recognized |
|
|
Heating Mantle Power |
220-240V 50/60Hz 15A |
|
|
Heater Chiller Requirements |
110-120V 50/60Hz 15A |
|
|
Vacuum Pump Requirements |
110-120V 50/60Hz 15A |
|
|
Warranty |
1 Year (Pump holds a 2 Year Warranty) |
|
|

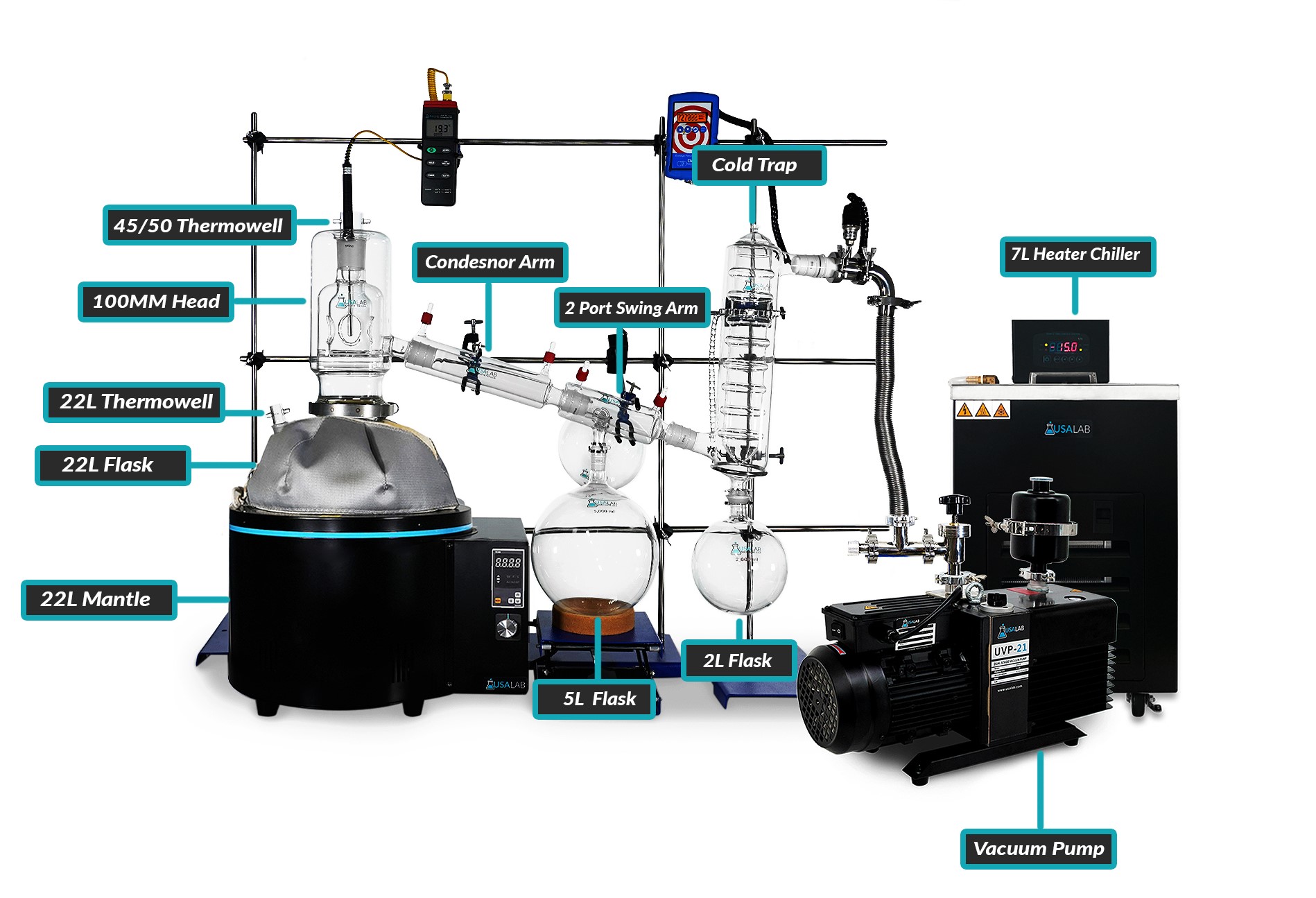

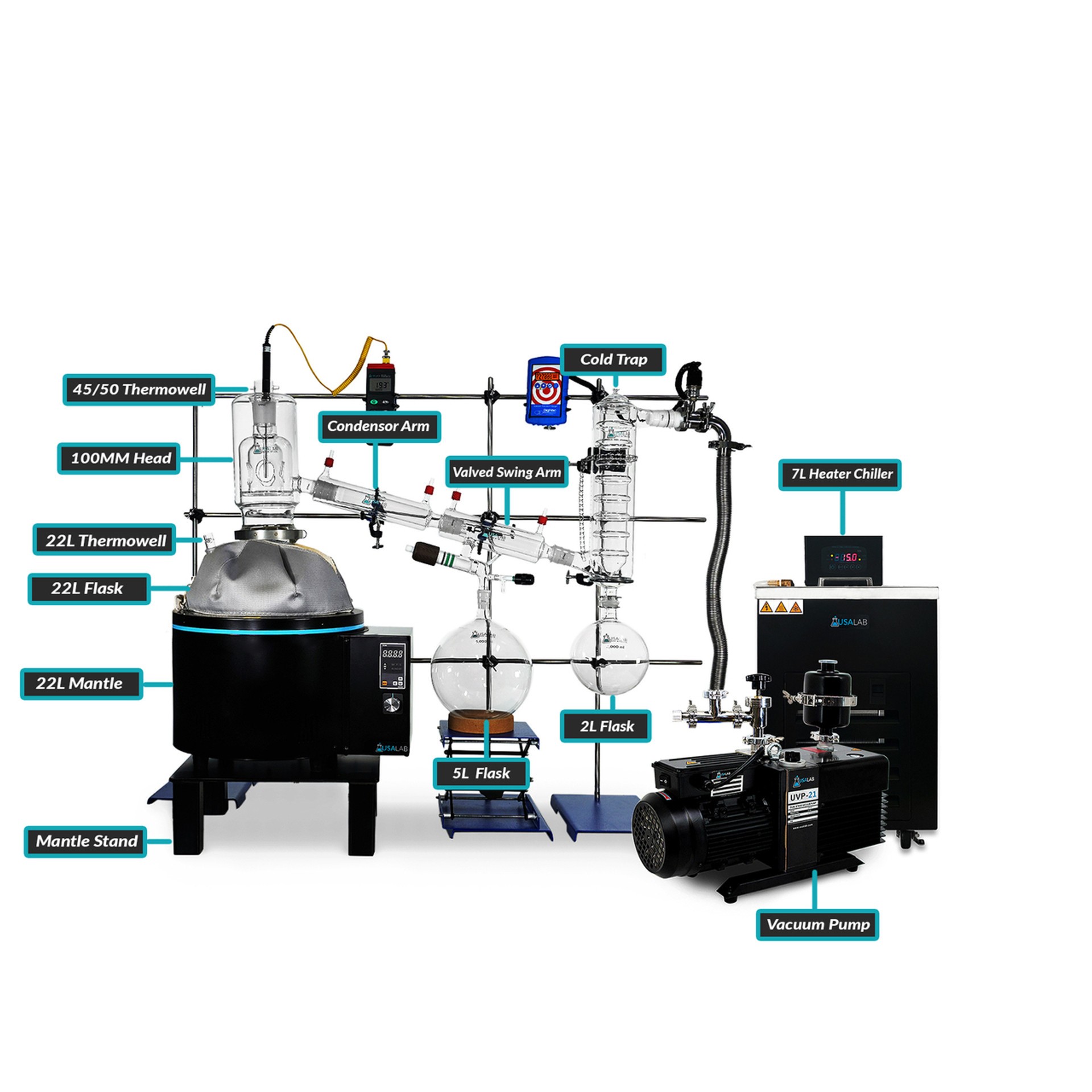

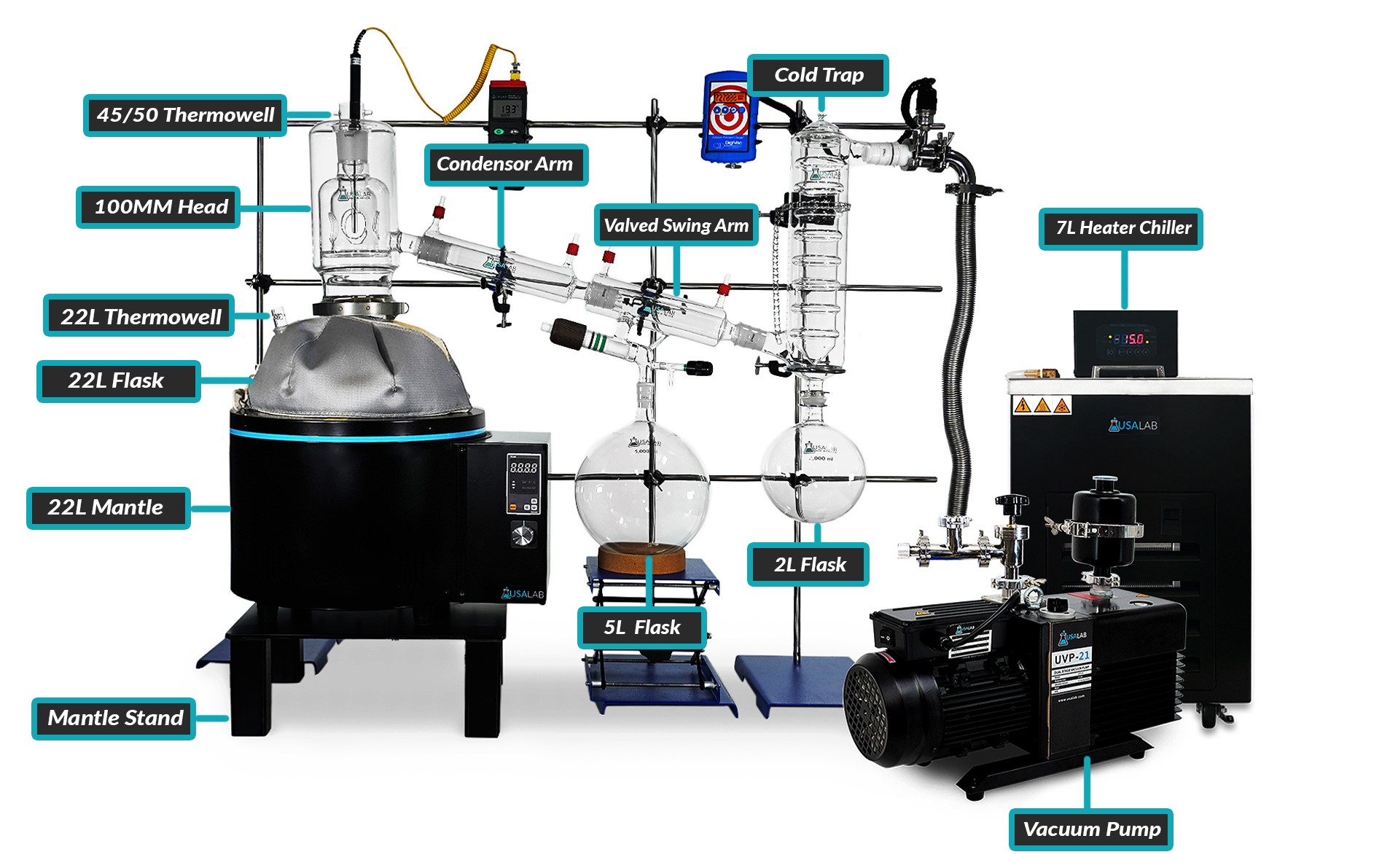

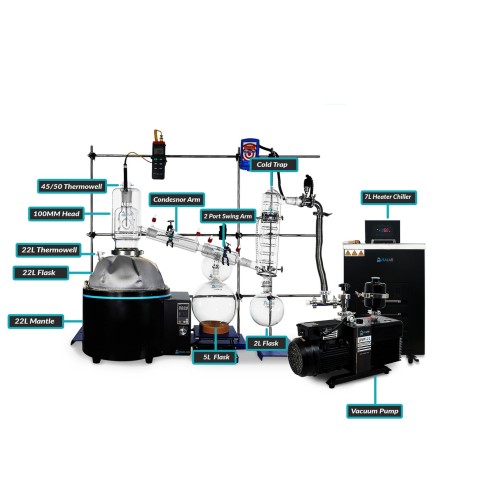

PACKING LIST |
||
|
Name |
SKU |
Quantity |
|
USA Lab 22L Digital Heating Mantle With Insulating Top USA-HM-22L |
USA-HM-22L |
1 |
|
20mm x 64mm Rare Earth Magnet |
REE-20x64 |
1 |
|
USA Lab Black Powder Coated Mantle Stand - 16" x 14" x 6" - Made in the USA |
M-STAND-16X14X6 |
1 |
|
USA Made N 22L 2 Neck Round Bottom Flask - 100MM Center - 24/40 Side |
N-22LRBF-100MM-2440-2N |
1 |
|
USA Made 22L 24/40 Thermowell |
N-22L-2440-THERMO |
1 |
|
Chemglass 100MM FEP-Silicone O-ring |
CG-147-41 |
1 |
|
Chemglass 100MM Stainless Steel Duran Flange |
CG-141-02 |
1 |
|
USA Made N4 100MM Jacketed Distillation Head - 45/50 Top - 34/45 Side |
N4-100MM-HEAD |
1 |
|
USA Made N4 Single Jacketed Swing Arm Isolation Adapter w/ Valves 34/45 Sides - 24/40 Bottom |
N-3445-2P-SWING |
1 |
|
USA Made Two Port Jacketed Swing Arm Adapter Cow - 34/45 (Optional) |
N4-3445-ISO |
1 |
|
USA Made N4 Angled Cold Trap - 34/45 |
N4-3445-CT |
1 |
|
USA Made N Cold Trap Lid |
N-COLDTRAP-LID |
1 |
|
USA Made N 12L Short Path Condenser 34/45 |
N-12L-3445-CONDENSER |
1 |
|
USA Made Short 45/50 Thermowell for Distillation Heads |
N-12-22L-4550-THERMO |
1 |
|
USA Made 5L 1 Neck Round bottom Flask - 24/40 |
N-5LRBF-2440-1N |
1 |
|
USA Made 2L 1 Neck Round bottom Flask - 24/40 |
N-2LRBF-2440-1N |
2 |
|
USA Made 1L 1 Neck Round bottom Flask - S35/20 |
N-1LRBF-S3520-1N |
1 |
|
DigiVac Bullseye Precision Vacuum Gauge |
BPG |
1 |
|
USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe |
USA-TM |
1 |
|
USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump |
UVP-21 |
1 |
|
USA Lab -20°C to 150°C 7L Compact Recirculating Heater Chiller 110V USA-RHC-7L |
USA-RHC-7L |
1 |
|
KF-25 to KF-25 x 1/8" FNPT Adapter |
KF25X238 |
1 |
|
USA LAB KF25 90 Degrees |
KF2590 |
1 |
|
USA Lab KF25 3-Way Tee |
KF25-3WAY |
1 |
|
KF25 Pressure Release Valve Stainless Steel |
KF25PRV |
1 |
|
USA LAB KF25 Right Angle Valve |
KF25RAV |
1 |
|
Aluminum KF25 Vacuum Pump Flange Centering Ring |
KF25RING |
6 |
|
Vacuum Pump Clamp KF25 |
VPCKF25 |
6 |
|
KF25 Bellow Hose 36" |
KF25BELLOW36 |
1 |
|
Eisco Jack Laboratory, plate size 20x20cm. |
CH0642B |
1 |
|
Eisco Extra Large Laboratory Stand Kit 12.4" X 8" w/ 39.5" Rod |
CH0652DKIT |
3 |
|
Stainless Steel Rod for Lattice Supports |
6FT-SSROD |
3 |
|
Premium Boss Head Clamp |
P-BHC |
15 |
|
Eisco Blue Large Clamp Retort 3 Prong |
PRCMP07 |
4 |
|
Eisco 8" Chain Clamp for Lab Stand |
PRCMP21 |
1 |
|
4" Diameter Extension Support Ring |
SUPPORTRING |
1 |
|
Lab Cork Stand Ring |
CORK2L |
3 |
|
Chemglass GL-14 Cap with Aperture |
CG-195-01 |
4 |
|
Chemglass Removable GL-14 Straight Hose Connectors |
CG-198-02 |
4 |
|
Inland 19 Vacuum Pump Oil 1 Gallon |
INLAND191GAL |
1 |
|
USA Lab Propylene Glycol USP Kosher 100% Concentrate - 5 Gallons |
PG5GAL |
1 |
|
USA Lab KF25 to 34/45 PTFE Adapter |
KF25TO3445 |
1 |
|
USA Lab Stainless Steel S35 Pinch Clamp |
S35-CLAMP |
1 |
|
Heating Mantle Manual |
1 |
|
|
Heater Chiller Manual |
1 |
|
|
Vacuum Pump Manual |
1 |
|
| HEATING MANTLE INFO | |
 |
USA Lab 22L W/ Heating Top - 300°C 3000RPM | 220-240V 60Hz 15A 1600W | SKU:USA-HM-22L |
| HEATER CHILLER INFO | |
 |
USA Lab -20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720 |
| VACUUM PUMP INFO | |
 |
USA Lab UL Listed 21CFM UVP-21 2-Stage Vacuum Pump | 110-120V 60Hz 15A | SKU:UVP-21 |
| VACUUM GAUGE INFO | |
 |
|
| THERMOMETER INFO | |
 |
|
|
VACUUM GREASE INFO |
|
|
|
Apiezon PFPE 501 High Temperature Vacuum Grease 100g
|
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand-new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
