USA Lab Single Jacketed Glass Reactor Lids

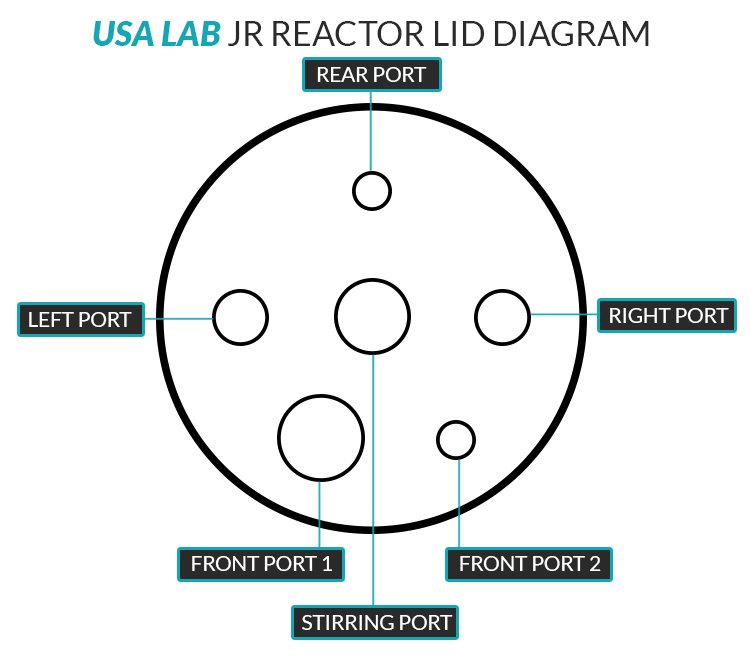

JR REACTOR LID SPECIFICATIONS |
|||||
Model |
JR-5L |
JR-10L |
JR-20L |
JR-50L |
JR-100L |
Left Port |
29mm Joint |
40mm Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
Right Port |
35mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
Rear Port |
24mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
Stirring Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
60mm Flange Port |
Front Port 1 |
N/A |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
Front Port 2 |
24mm Joint |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
