100L 6" Tri-Clamp Sanitary Keg w/ Dip Tube - V2
Out of stock
FULFILLMENT OPTIONS

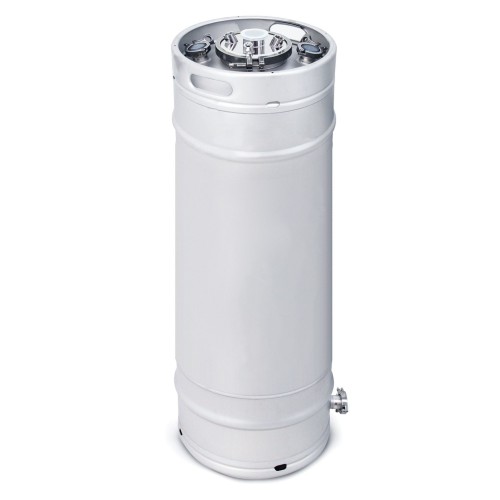

USA Lab 100L Stainless Steel Keg with 6" Tri-Clamp Lid

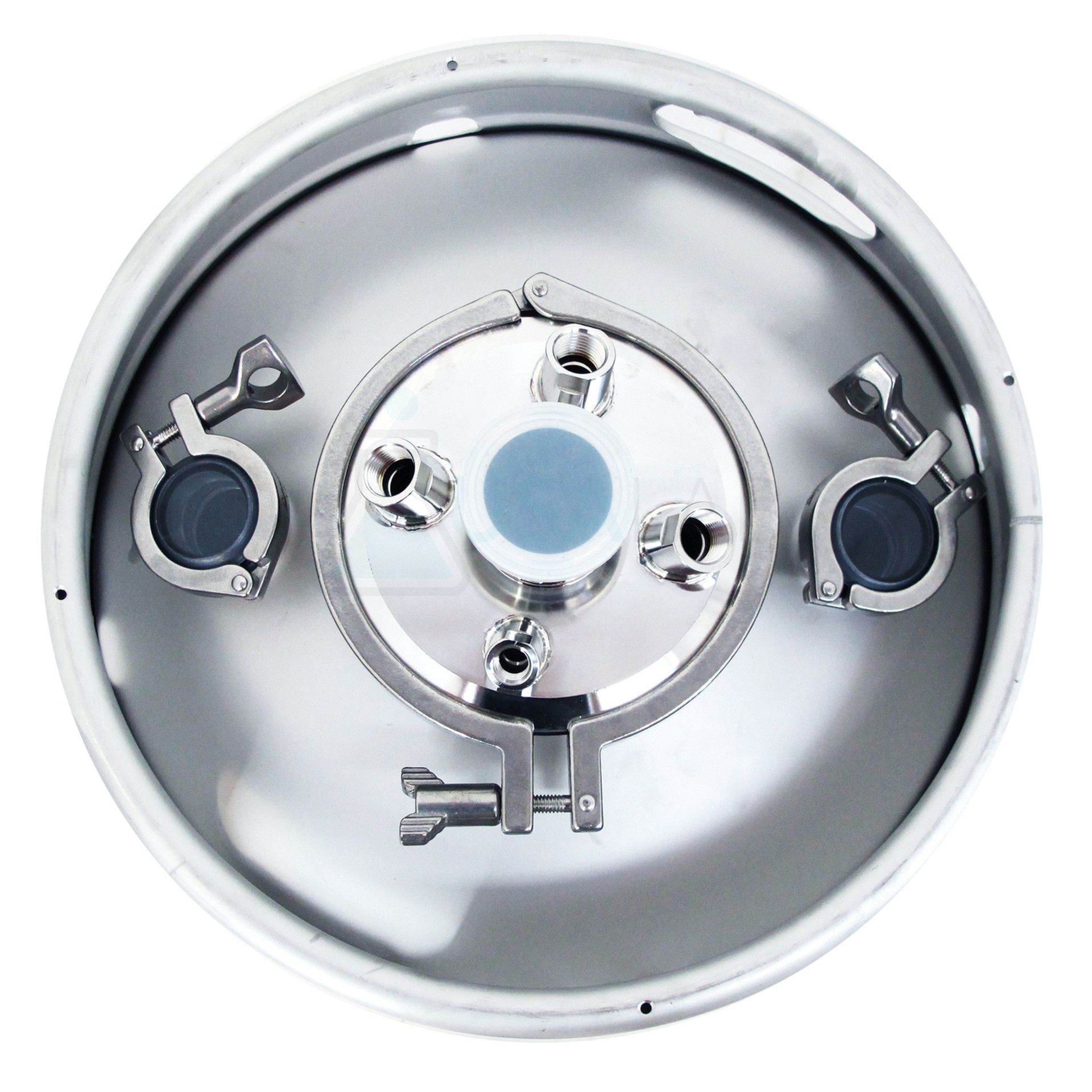

The USA Lab 100L stainless steel keg is equipped with a 6" tri-clamp lid featuring a 2" tri-clamp center port, a 1/4" FNPT dip tube, and a 1/2" FNPT port. This versatile configuration allows users to adapt the keg for use as a collection vessel, storage tank, or for a variety of other laboratory needs. Each keg includes the 6" lid with tri-clamp dip tube for convenience and flexibility.
*Not intended for water storage.*

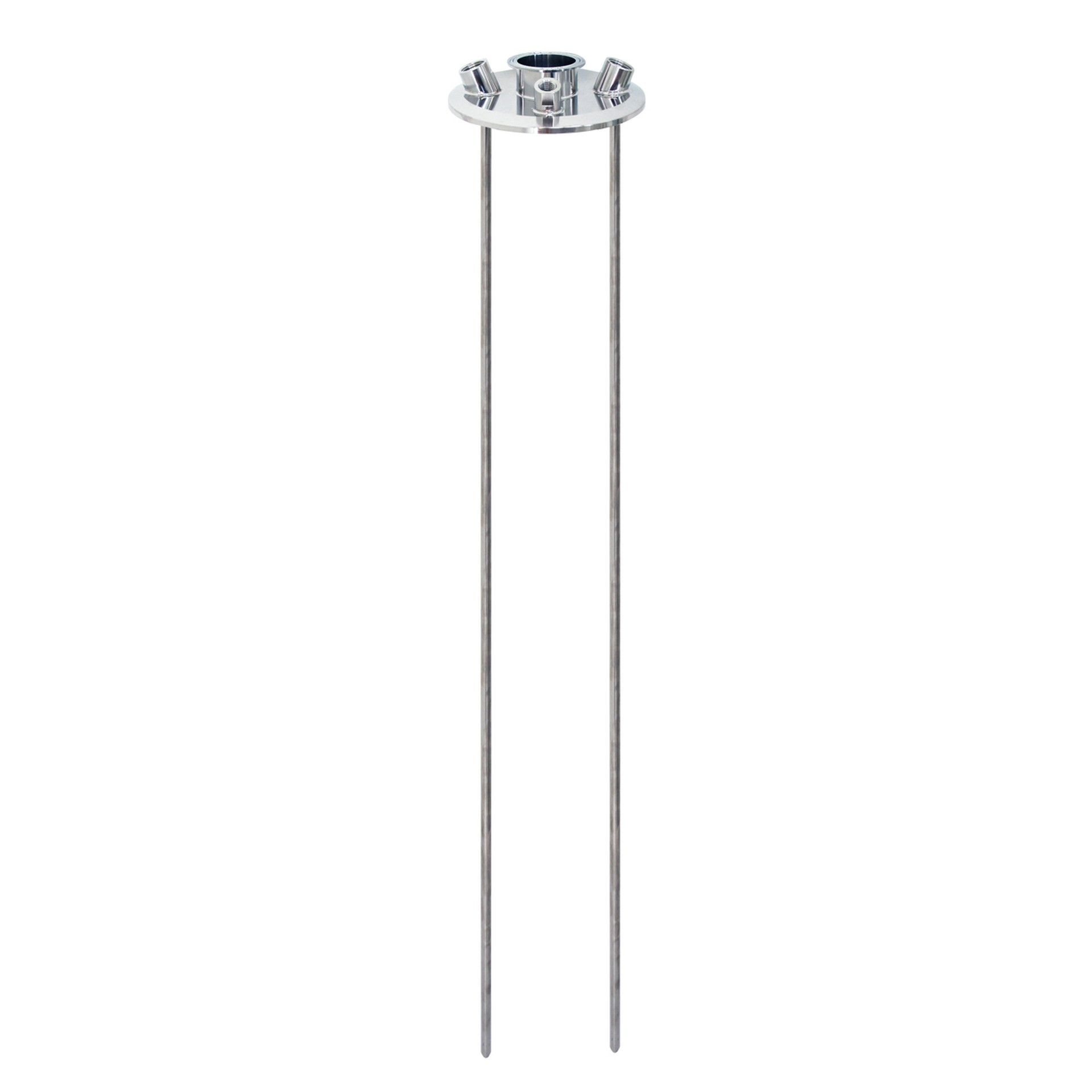

The dip tube transitions from 1/2" FNPT (12.7 mm) to 8 mm tubing.
|
100LKEG SPECIFICATIONS |
|
•Material: 304 Stainless Steel |
|
•Capacity: 100L |
|
•Lid Size: 6" Tri-Clamp |
|
•PSI Rating: 45psi |
|
•Lid Connections: (1x 1/2" FNPT) (2x 1/2" FNPT w/ Dip Tube) (1x 1/4" FNPT) (1x 2" TC) |
|
•Top Connection: 2pcs 1.5" Tri-Clamp |
|

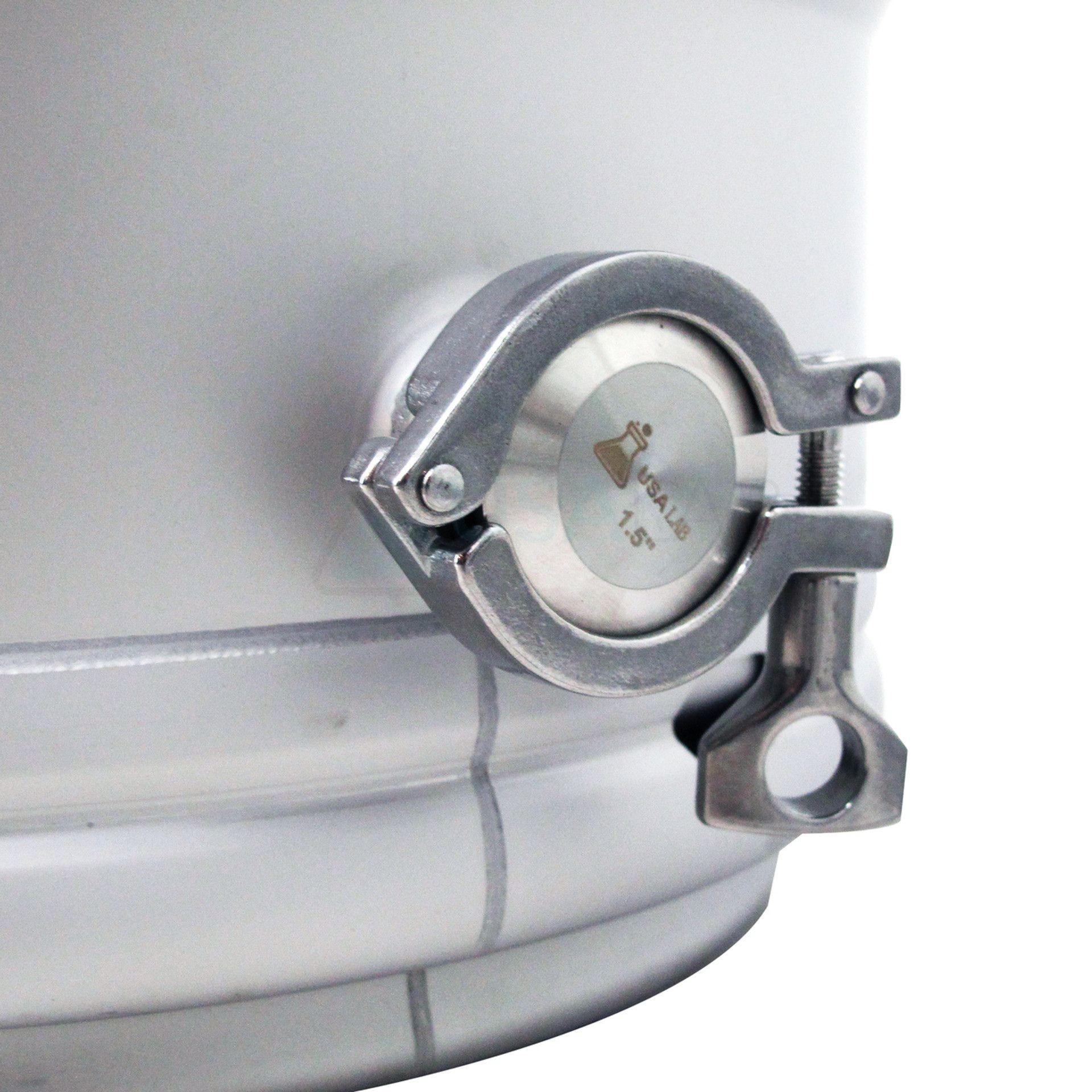

•Drain Connection: 1.5" Tri-Clamp |
|
•Exterior Dimensions: 16" L x 16" W x 37" H |
|
•Weight: 71lbs |
|
100LKEG PACKING LIST |
|
|
100L Sanitary Keg |
1pc |
|
1.5" Poly Sight Glass |
2pcs |
|
1.5" Solid End Cap |
1pc |
|
6" Buna-N Gasket |
1pc |
|
1.5" Buna-N Gasket |
3pcs |
|
6" Standard Pressure Tri-Clamp |
1pc |
|
1.5" Standard Pressure Tri-Clamp |
3pcs |
|
6" Lid with 2x 1/2" FNPT w/ Dip Tube, 1x 1/2" FNPT, 1x 1/4" FNPT,1x 2" TC |
1pc |
