12" Buchner Funnel With Lid For Top Pressure - SS304
Out of stock
FULFILLMENT OPTIONS

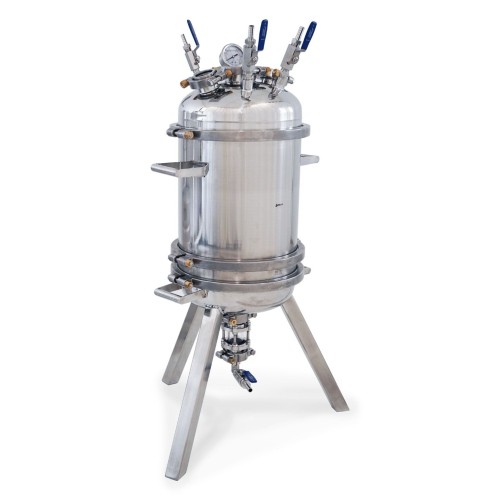

USA Lab 12" Stainless Steel Buchner Funnel Kit with Lid
The USA Lab 12" Stainless Steel Buchner Funnel Kit with Lid is built for flexibility and performance, combining infeed, assisted pressure, and pressure release functions in a single system. Designed for customization, this funnel and lid setup can be adapted to fit a wide variety of laboratory needs.
Upgrade your filtration process with this durable, stainless steel kit and get started right away with a professional-grade solution.
The pre-assembled Buchner includes pre-taped and installed fittings.
|
12PBF Specifications |
|
|
Material |
304 Stainless Steel |
|
Capacity |
22L |
|
Filter Micron (Mesh) |
100 Micron (150 Mesh) |
|
Filter Plate Size |
12" Tri-Clamp |
|
PSI Rating |
30psi |
|
Lid Connections |
(2x 2" Tri-Clamp) (1x 3" Tri-Clamp) |
|
Bottom Connections |
(1x 2" Tri-Clamp) |
|
Exterior Dimensions |
24.5" L x 24.5" W x 38" H |
|
Weight |
72lbs |
|

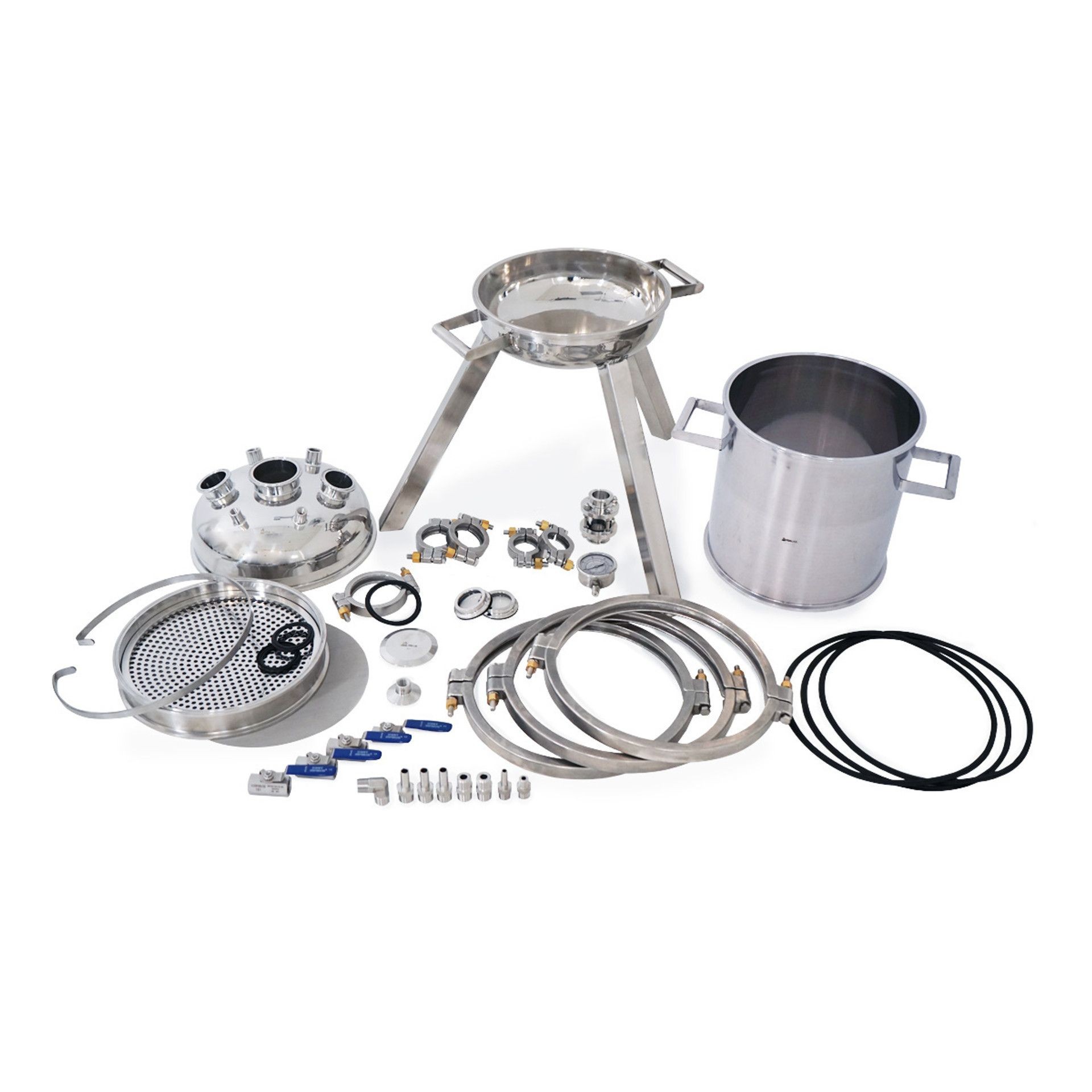

12PBF Packing List |
|
|
Item |
QTY |
|

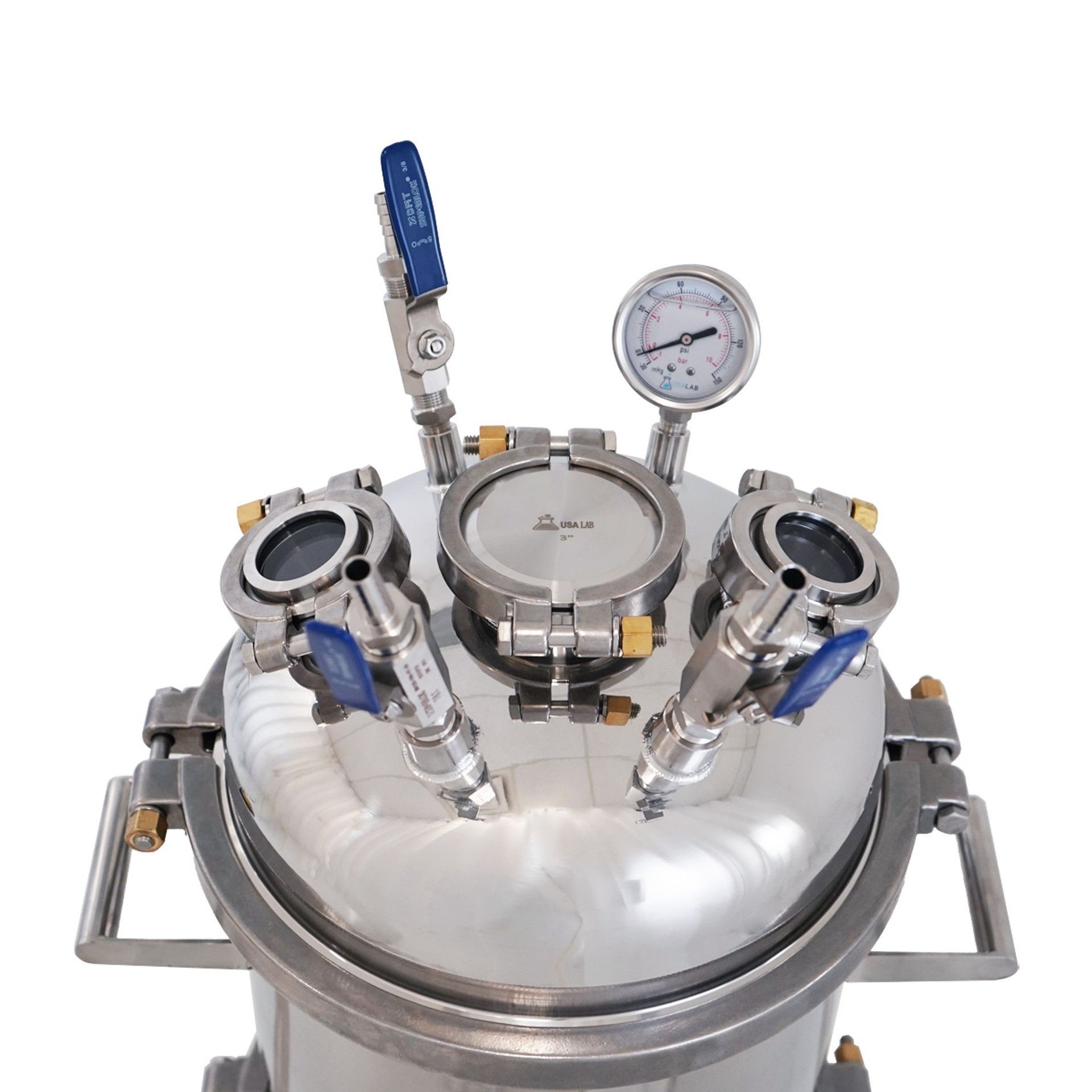

12" Tri-Clamp Hemispherical Lid with (2x 2" Tri-Clamp) (1x 3" Tri-Clamp) (2x 1/4" FNPT) (2x 1/2" FNPT) |
1 |
|
Spool with Handles - 12" Tri-Clamp |
1 |
|
Filter Plate Kit with 100 Micron Mesh and Compression Ring – 12" Tri-Clamp |
1 |
|
Hemispherical Reducer with Handles and Legs - |
1 |
|
End Cap with 1/2 FNPT - 1.5" Tri-Clamp |
1 |
|
Solid End Cap - 3" Tri-Clamp |
1 |
|
Meta Sight Glass - 2" Tri-Clamp |
2 |
|

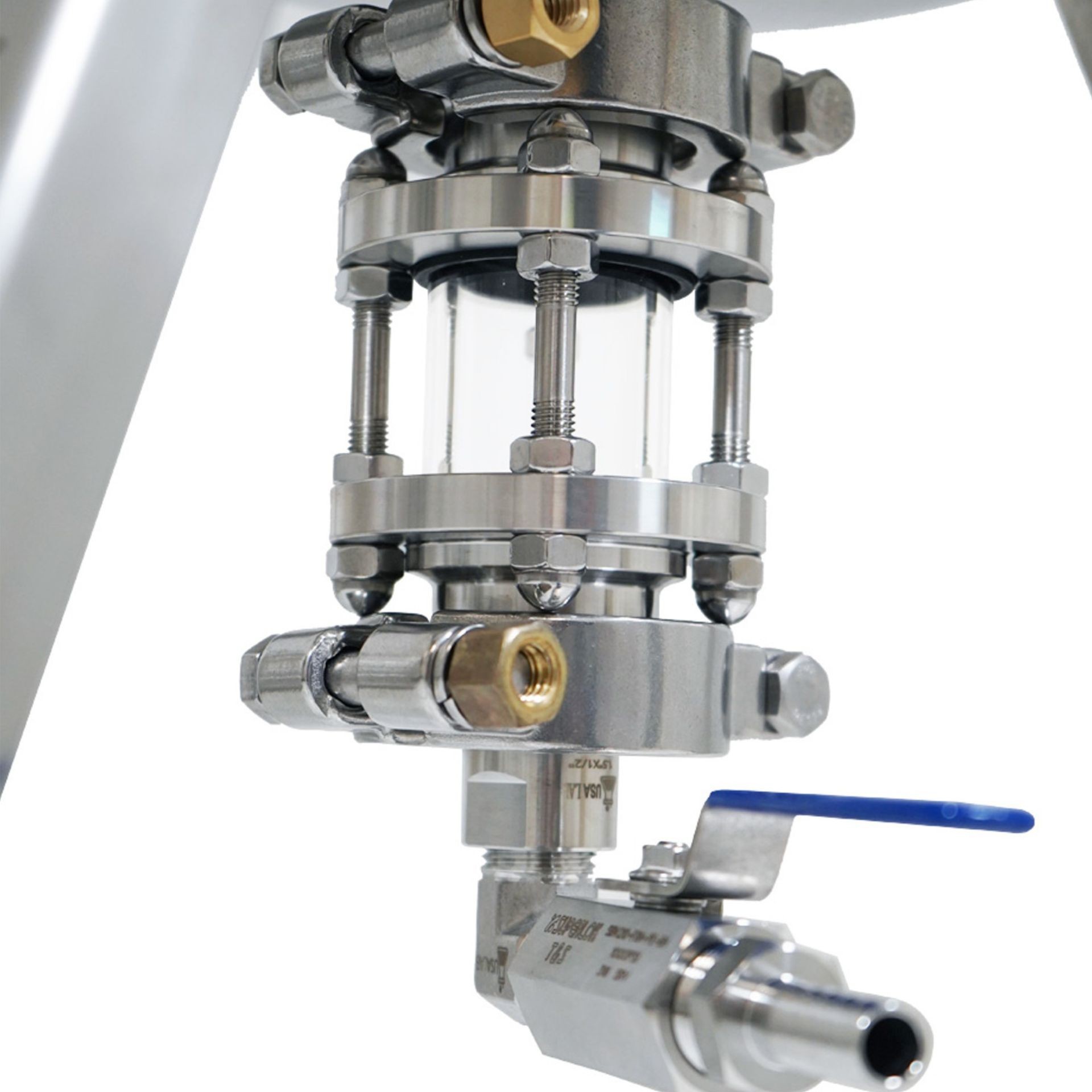

Short Sight Glass - 1.5" Tri-Clamp |
1 |
|
Glycerin Compound Gauge - 1/4" NPT Bottom Mount |
1 |
|
Superlok FNPT 210 Series Ball Valve - 1/2" |
3 |
|
Superlok FNPT 210 Series Ball Valve - 3/8" |
1 |
|
High Pressure Tri Clamp - 12" Tri-Clamp |
3 |
|
High Pressure Tri Clamp - 3" Tri-Clamp |
1 |
|
High Pressure Tri Clamp - 2" Tri-Clamp |
2 |
|
High Pressure Tri Clamp - 1.5" Tri-Clamp |
2 |
|
Buna-N Tri Clamp Gasket - 12" Tri-Clamp |
3 |
|
Buna-N Tri Clamp Gasket - 3" Tri-Clamp |
1 |
|
Buna-N Tri Clamp Gasket - 1.5" Tri-Clamp |
2 |
|
Street Elbow 90 Degrees - 1/2" MNPT x 1/2" MNPT |
1 |
|
1/2" Barb x 1/2" MNPT Adapter |
3 |
|
3/8" Barb x 3/8" MNPT Adapter |
1 |
|
1/2" MNPT x 1/2" MNPT Hex Nipple Union |
2 |
|
3/8" MNPT x 1/4" MNPT Hex Nipple Union |
1 |
