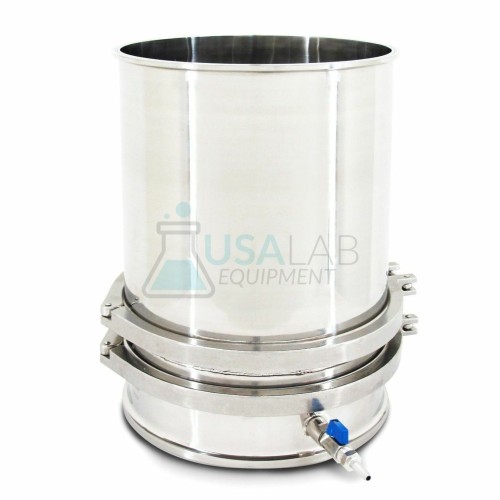

USA Lab Stainless Steel 12" in. Buchner Funnel SS 304
Out of stock
FULFILLMENT OPTIONS
TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |
The USA Lab 12" diameter stainless steel Buchner Funnel is built for strength and long-lasting use while remaining cost-effective. Designed as a reliable solution for filtration, this funnel delivers durability and performance without the high price tag of more expensive options. Get started on your filtration needs today with a professional-grade funnel at a fraction of the cost.
|
BSSBF12 Specifications |
|
|
Material |
304 Stainless Steel |
|
Capacity |
22.2L |
|
Connection Type |
Tri-Clamp |
|
Mesh Specs |
150 Mesh (100 Micron) |
|
Filter Plate Size |
12" |
|
Bottom Connections |
1/2" FNPT |
|
Exterior Dimensions |
17" L x 15" W x 17" H |
|
Weight |
51lbs |
|

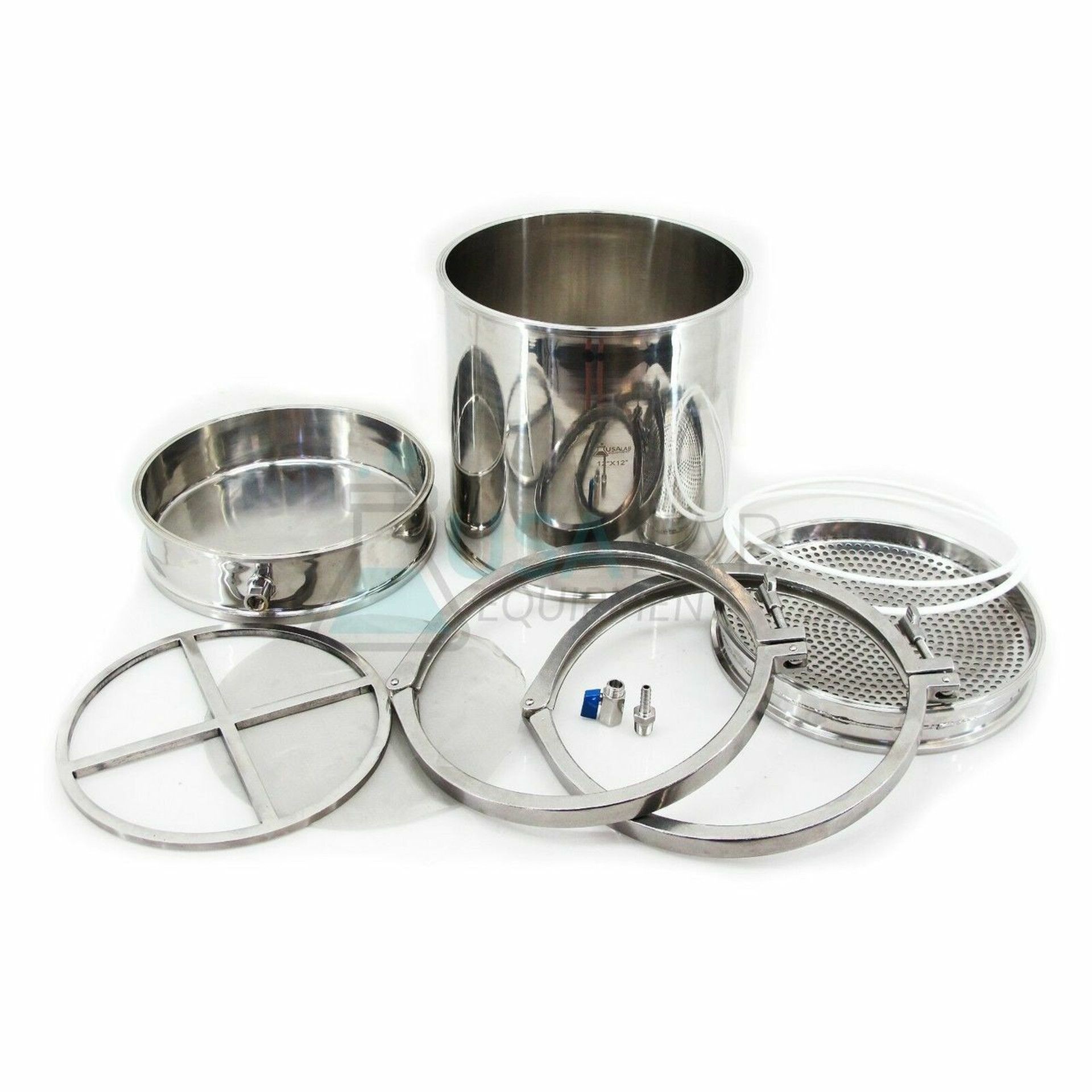

BSSBF12 Packing List |
|
|
12" x 12" Tri-Clamp Spool |
1pc |
|
12" Tri-Clamp Filter Plate |
1pc |
|
Filter Ring - 12" |
1pc |
|
12" Mesh - 150 Mesh (100 Micron) |
1pc |
|
12" Standard Pressure Tri-Clamp |
2pcs |
|
12" Buna Gasket |
2pcs |
|
Superlok Ball Valve - 1/2" FNPT |
1pc |
|
1/2" MNPT to 1/2" Barb |
1pc |
|
Vacuum Hose |
10ft. |
