12" Pressurized Buchner Funnel with 50L or 100L Keg
Out of stock
FULFILLMENT OPTIONS

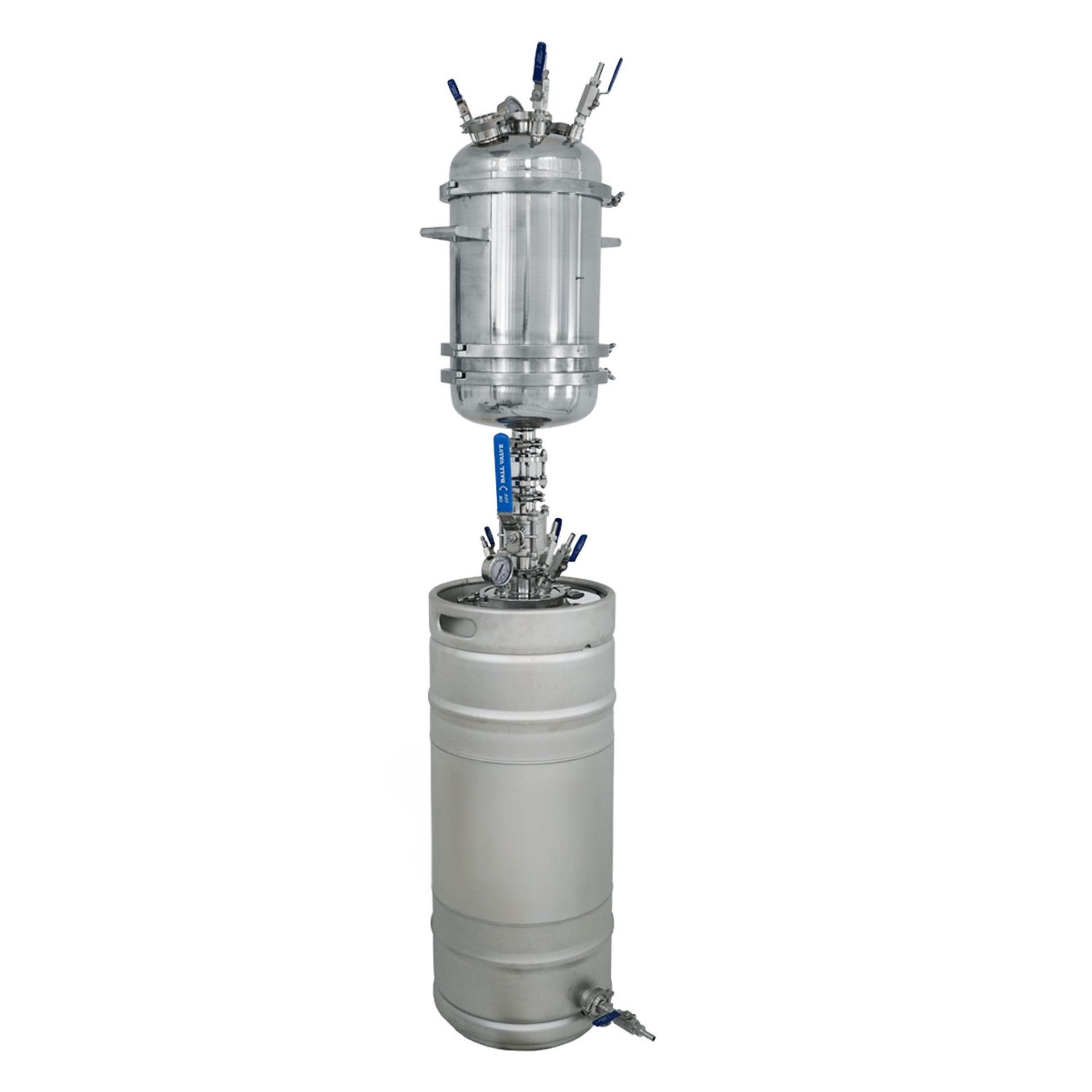

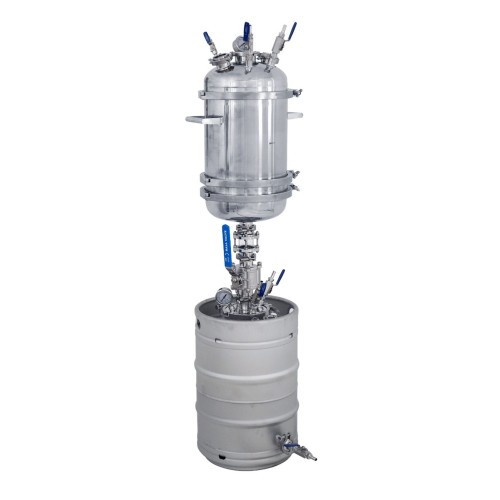

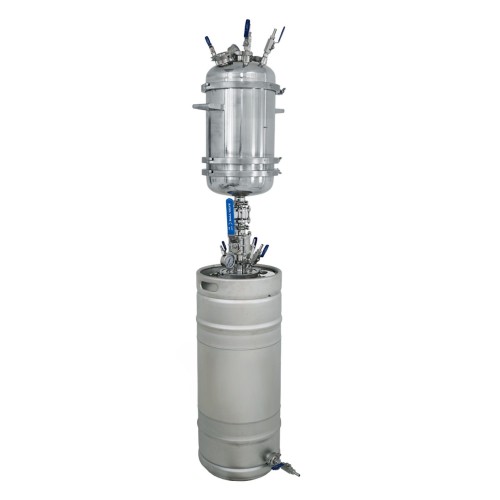

USA Lab 12" Buchner Funnel Kit with Lid
The USA Lab 12" Buchner Funnel Kit with Lid is designed for versatility, combining infeed, assisted pressure, and pressure release in a single system. This funnel allows full customization of the unit and lid to meet a wide range of user needs.
The system feeds directly into either a 50L or 100L keg, providing maximum storage capacity and ease of operation. Each keg comes equipped with two dip tubes, allowing for extraction by either vacuum or applied pressure. Built for efficiency and convenience, this kit is an excellent way to upgrade your filtration setup.
*Not intended for use with water.*
|
12BUCHNERKEG SPECIFICATIONS |
|
•Material: 304 Stainless Steel |
|
•Side Connections: 1.5" TC (1.5" to KF25 Included) |
|

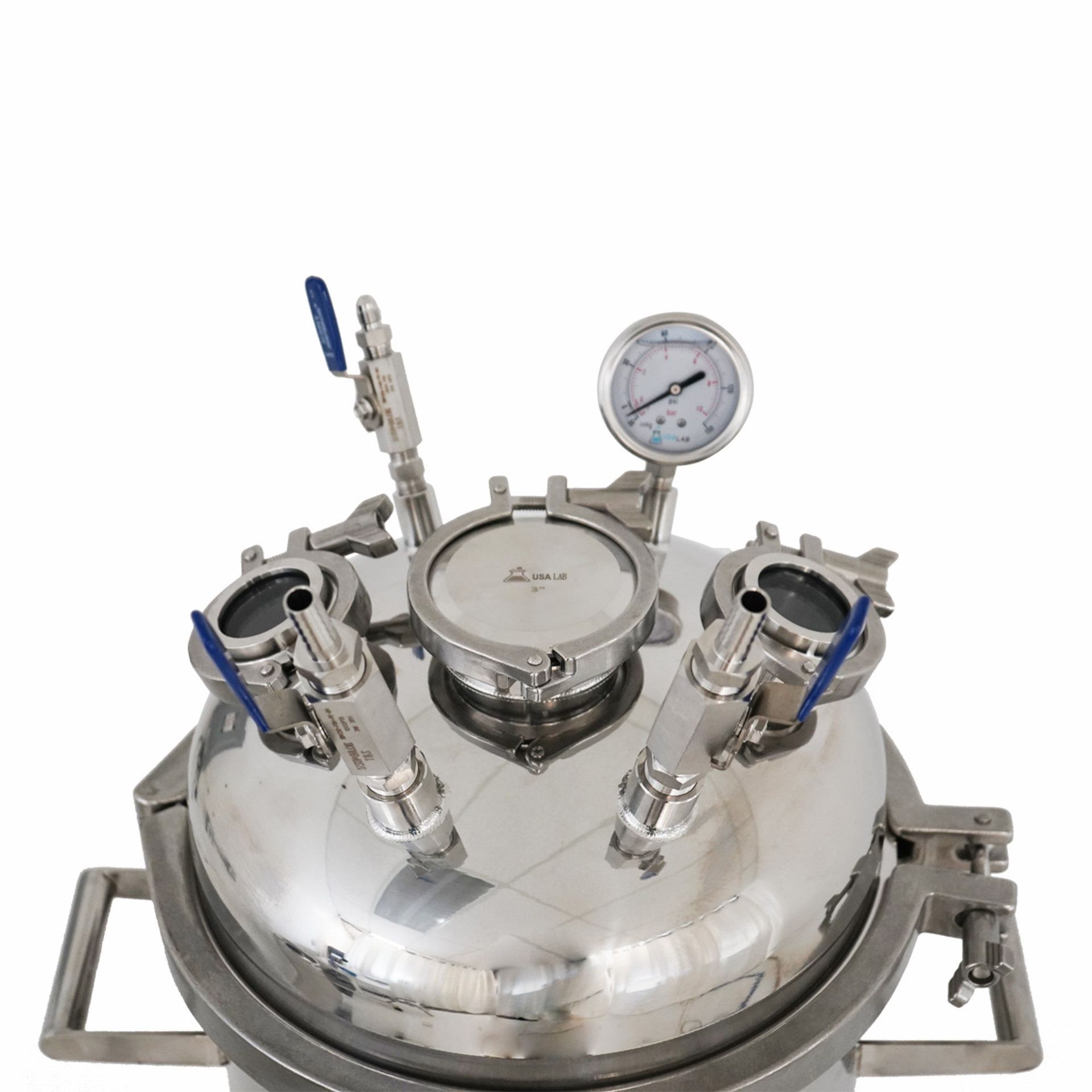

•Top Connection: 2x (3" TC for Glass), 2x (1/2"MNPT to 1/2" Barb), 1x (1/4"MNPT to 1/4"MJIC for Nitrogen), 1x (1/4" FNPT for Gauge) |
|

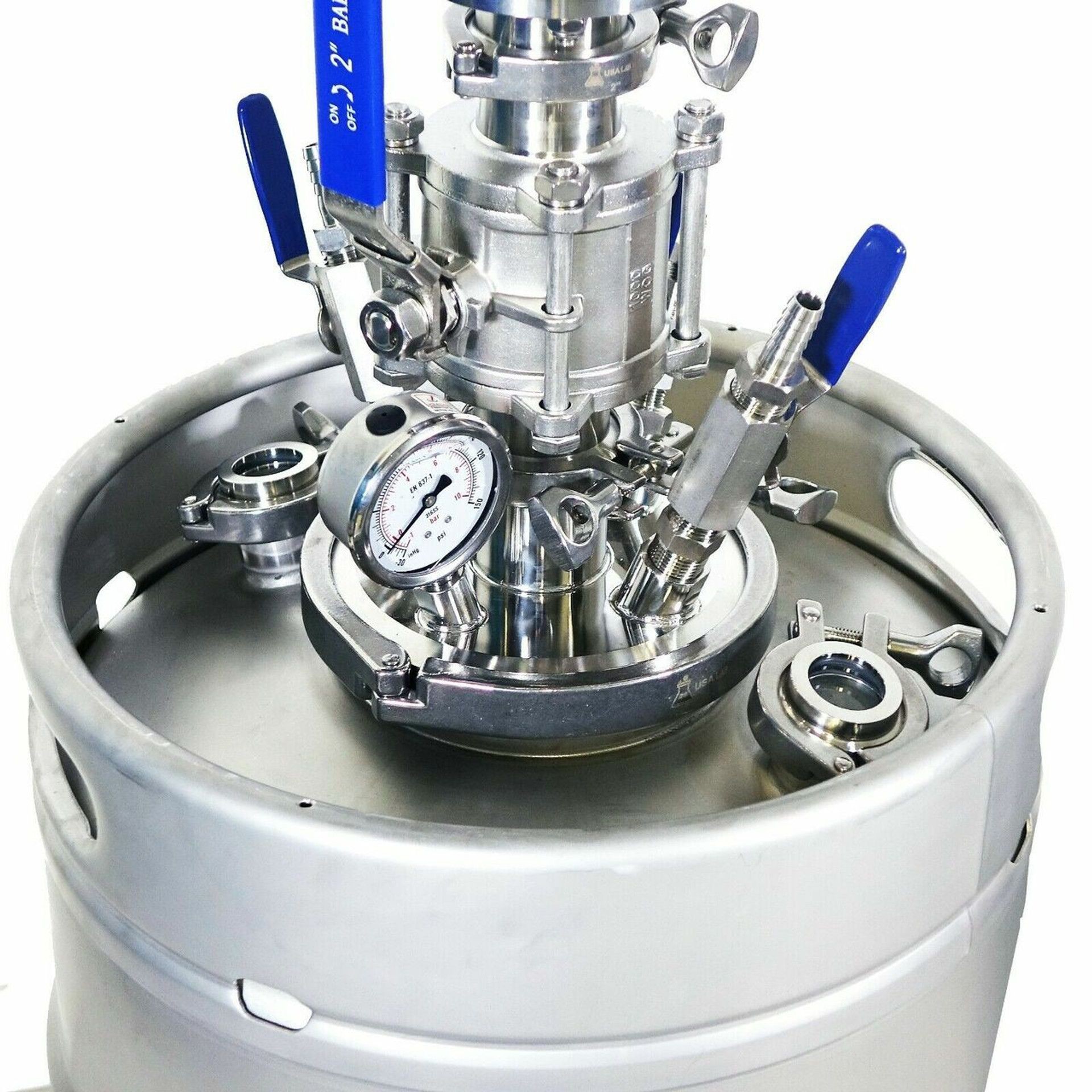

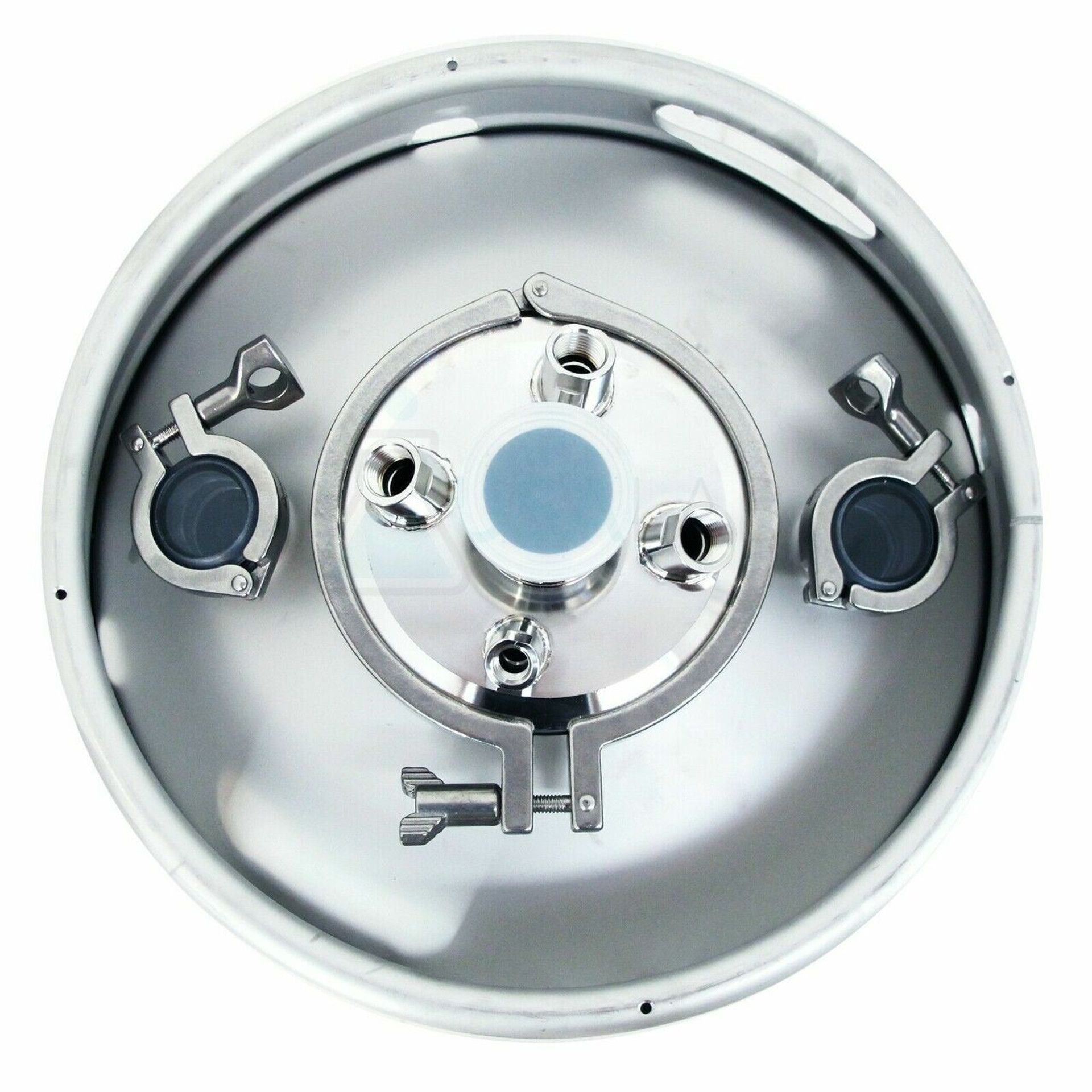

•Keg Connection: 2x (1.5" TC for Glass), 2x (1/2" FNPT to 1/2" Barb), 1x (1/2" FNPT to 1/4"MJIC for Nitrogen or Vacuum), 1x (1/4" FNPT for Gauge), 1x (2" TC for Top Port) |
|
•Keg Bottom Connection: 1.5" TC to 1/2" Barb |
|
•Buchner Capacity: 22L |
|
•Keg Capacity: 50L or 100L |
|
PACKING LIST |
|
|

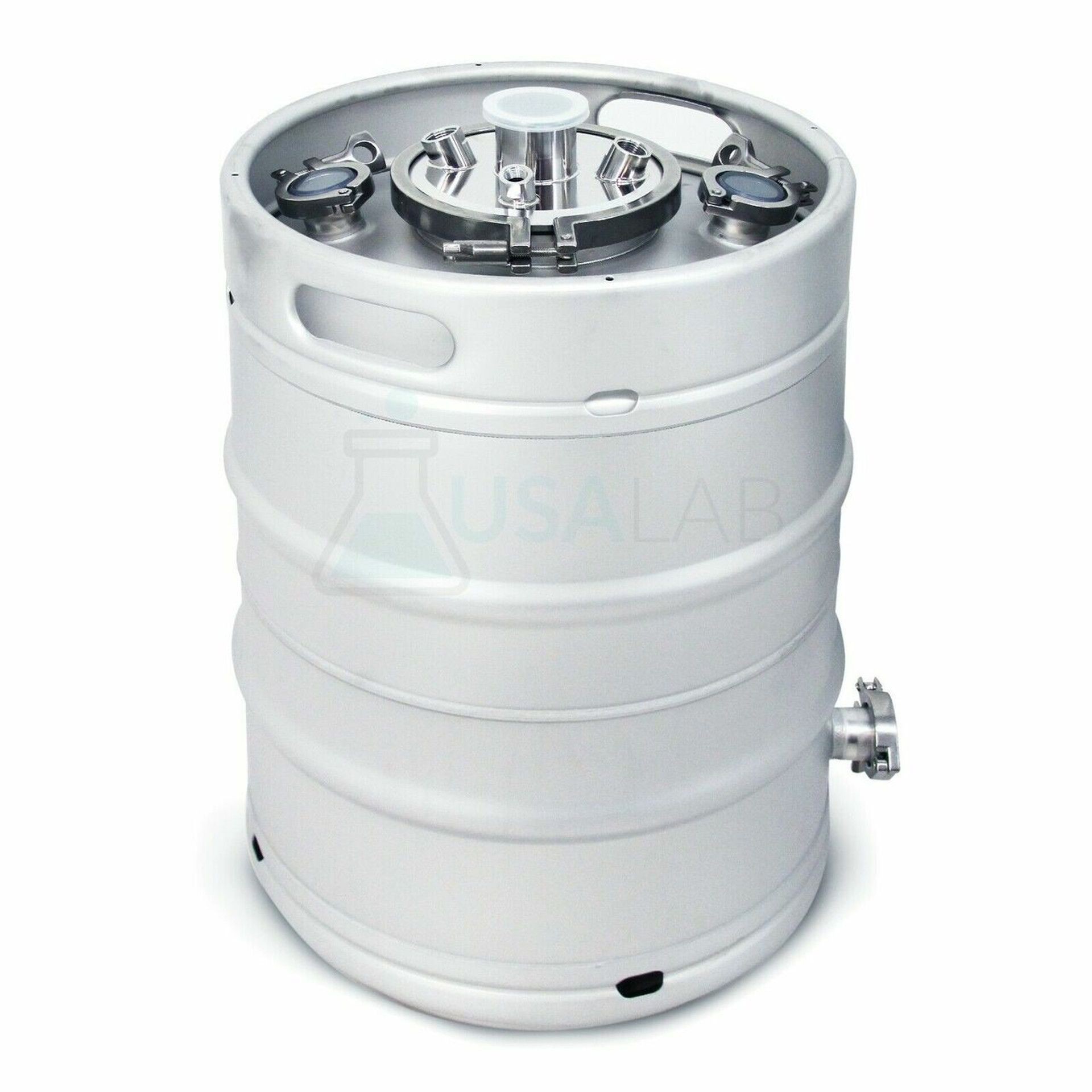

50L or 100L Keg with 1.5" TC Sight Glass |
1 pc |
|

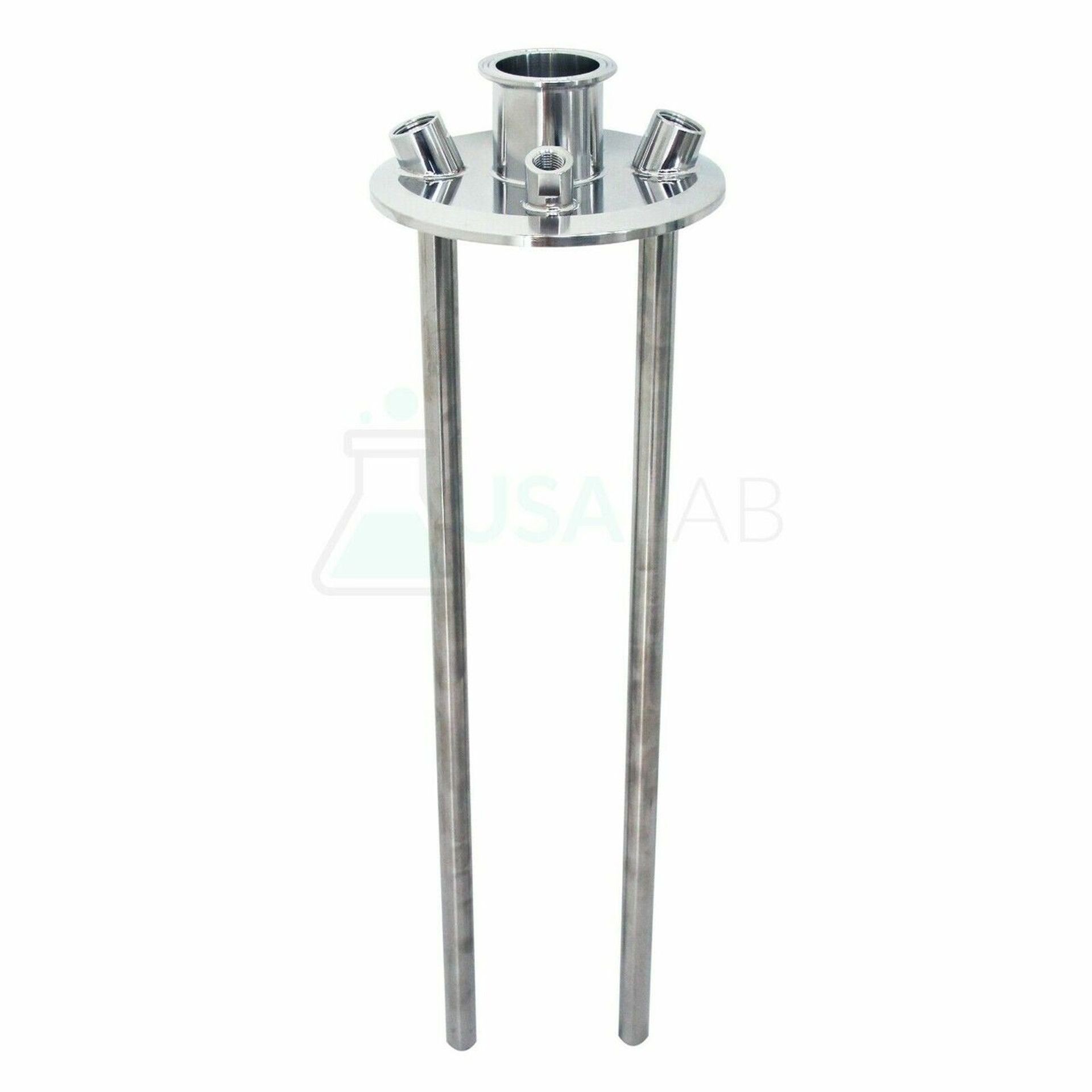

50L or 100L Keg Lid with Dip Tubes |
1 pc |
|

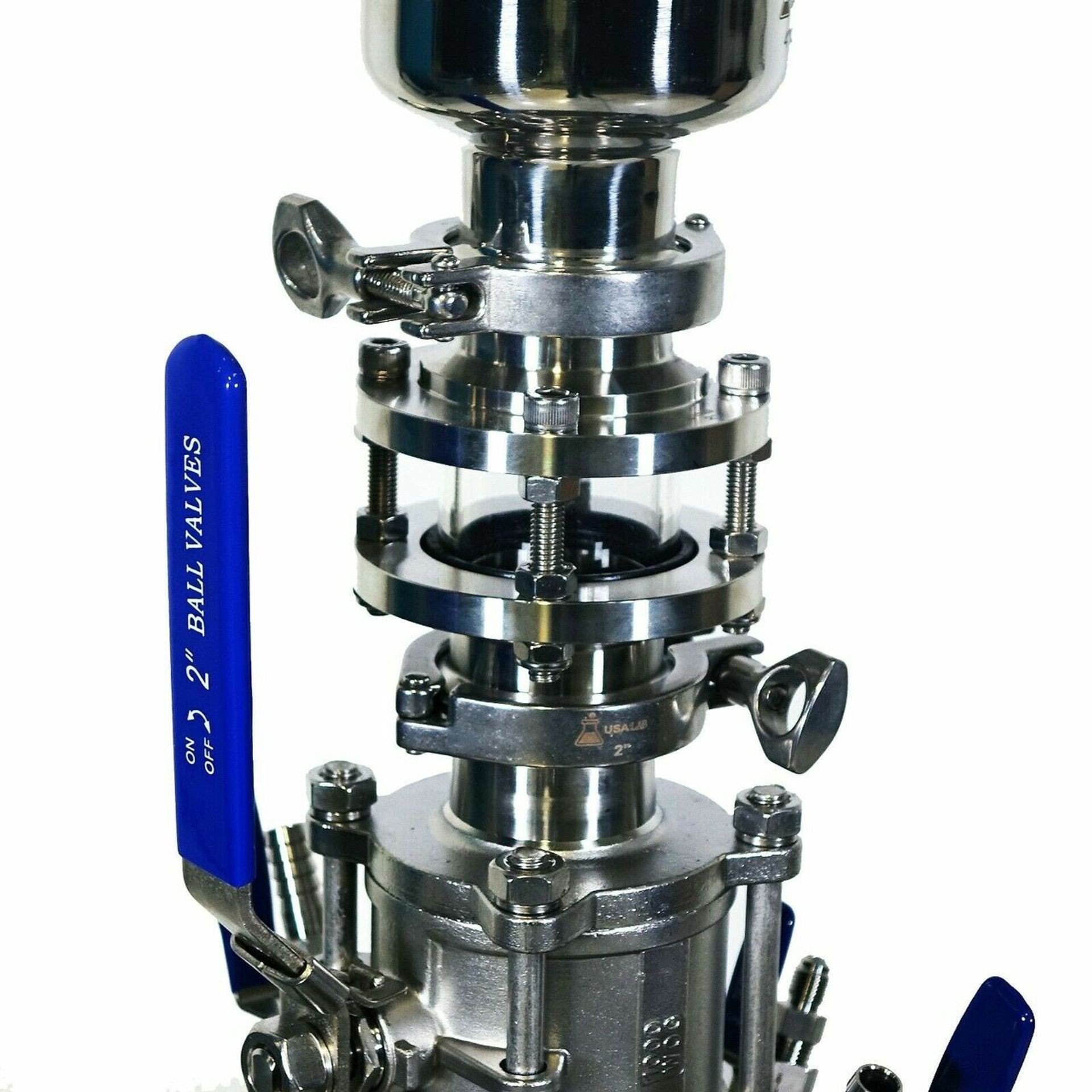

2" TC Ball Valve |
1 pc |
|
2" Short Sight Glass |
1 pc |
|
2" TC to 12" TC Hemi Reducer |
1 pc |
|
12" Filter Plate Kit |
1 pc |
|
12" x 12" TC Spool |
1 pc |
|
12" Hemi Lid with 2x 3" TC |
1 pc |
|
1.5" Borosilicate Sight Glass |
2 pcs |
|
2" Borosilicate Sight Glass |
2 pcs |
|
1.5" Buna-N Gasket |
1 pc |
|
2" Buna-N Gasket |
2 pcs |
|
12" Buna-N Gasket |
3pcs |
|

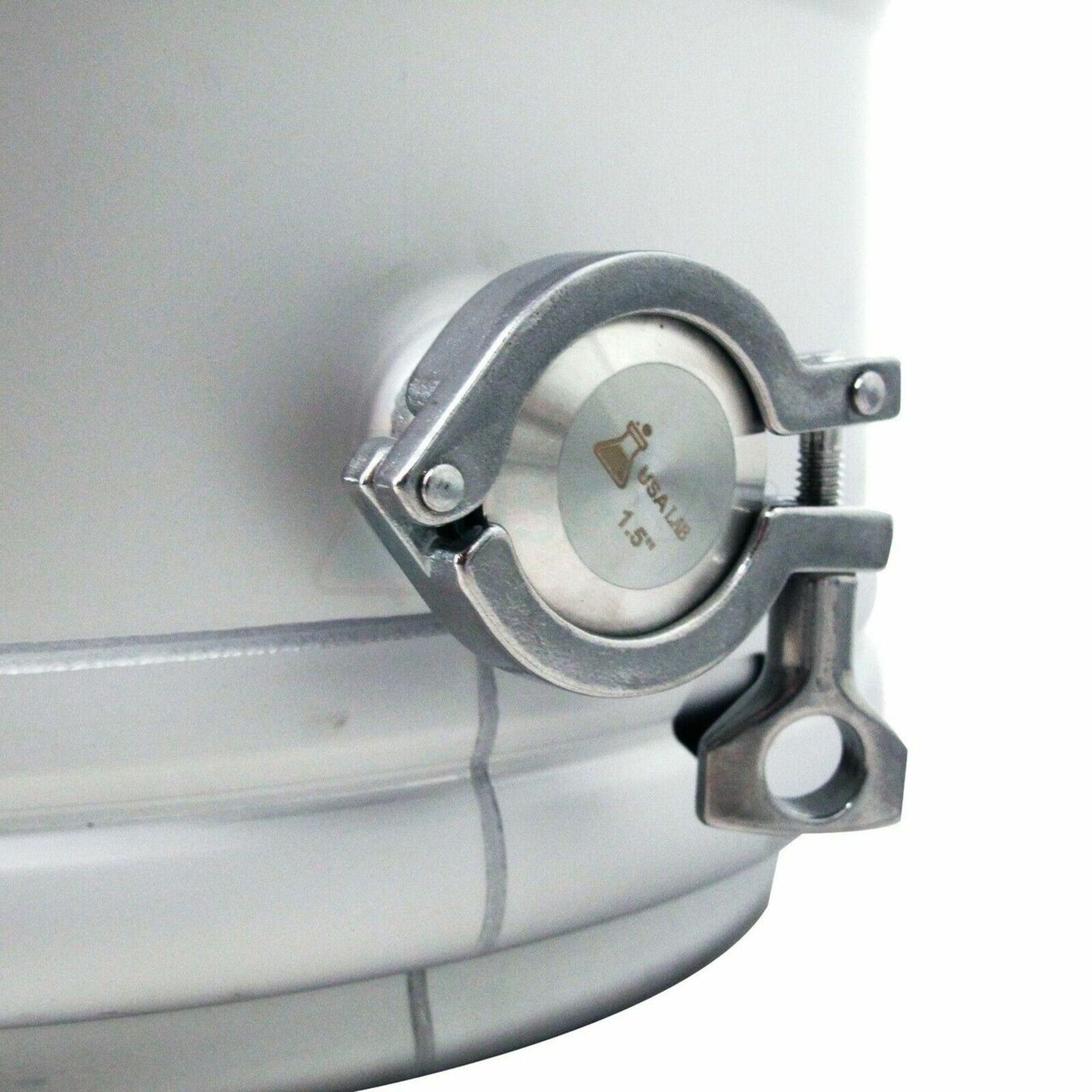

1.5" Standard Pressure Tri-Clamp |
3pcs |
|
2" Standard Pressure Tri-Clamp |
3 pcs |
|
4" Standard Pressure Tri-Clamp |
1 pc |
|
12" Standard Pressure Tri-Clamp |
3 pcs |
|
1/4" Superlok Valve |
2 pcs |
|
1/2" Superlok Valve |
5 pcs |
|
1/2" MNPT to 1/2" Barb |
5 pcs |
|
1/4" MNPT to 1/4" MNPT |
1 pc |
|
1/2" MNPT to 1/4" MNPT |
1 pc |
|
1/4" MNPT to 1/4" MJIC |
2 pcs |
|
1/2" MNPT to 1/2" MNPT |
5 pcs |
|
1/4" Gauge |
2 pcs |
|
1.5" TC to 1/2" FNPT |
1 pc |
