USA Lab 50L 6" Tri-Clamp Sanitary Keg w/ Dip Tube
In stock
FULFILLMENT OPTIONS

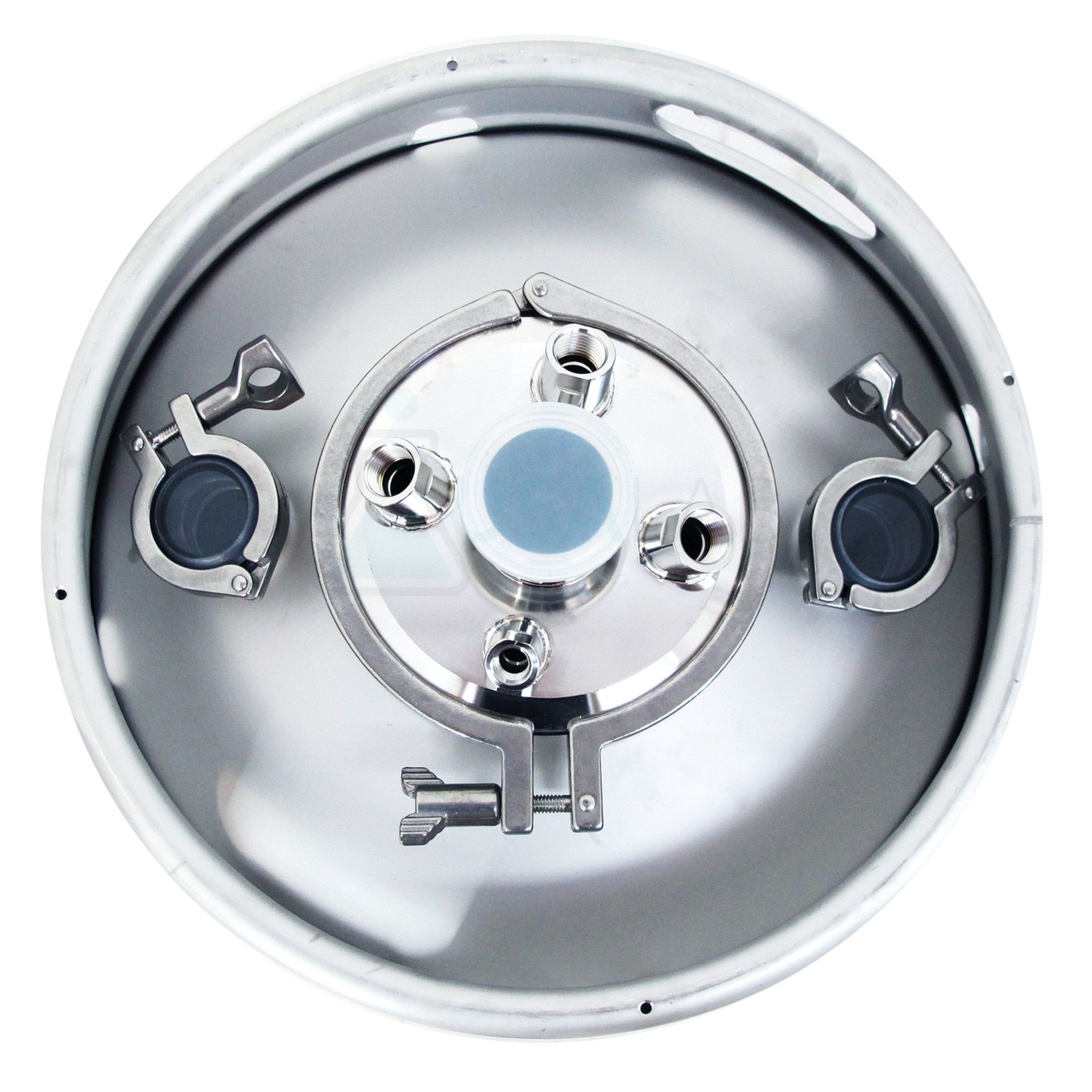

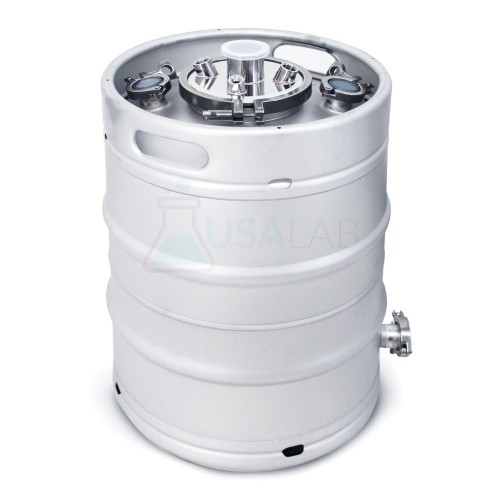

USA Lab 50L Stainless Steel Keg with 6" Tri-Clamp Lid
The USA Lab 50L stainless steel keg is equipped with a 6" tri-clamp lid featuring a 2" tri-clamp center port, a 1/2" FNPT dip tube, and a 1/2" FNPT port. This versatile design allows users to adapt the keg for use as a collection vessel, storage tank, or for various extraction process applications. The 6" lid with dip tube comes included for convenience and ready-to-use functionality.
*Not for water storage*
|
50LKEG Specifications |
|
|
Material |
304 Stainless Steel |
|
Full Capacity |
59.3L of Water |
|
Lid Size |
6" Tri-Clamp |
|
PSI Rating |
45psi |
|
Lid Connections |
(1x 1/2" FNPT) (2x 1/2" FNPT w/ Dip Tube) (1x 1/4" FNPT) 1x 2" TC) |
|
Top Connection |
2x 1.5" Tri-Clamp |
|

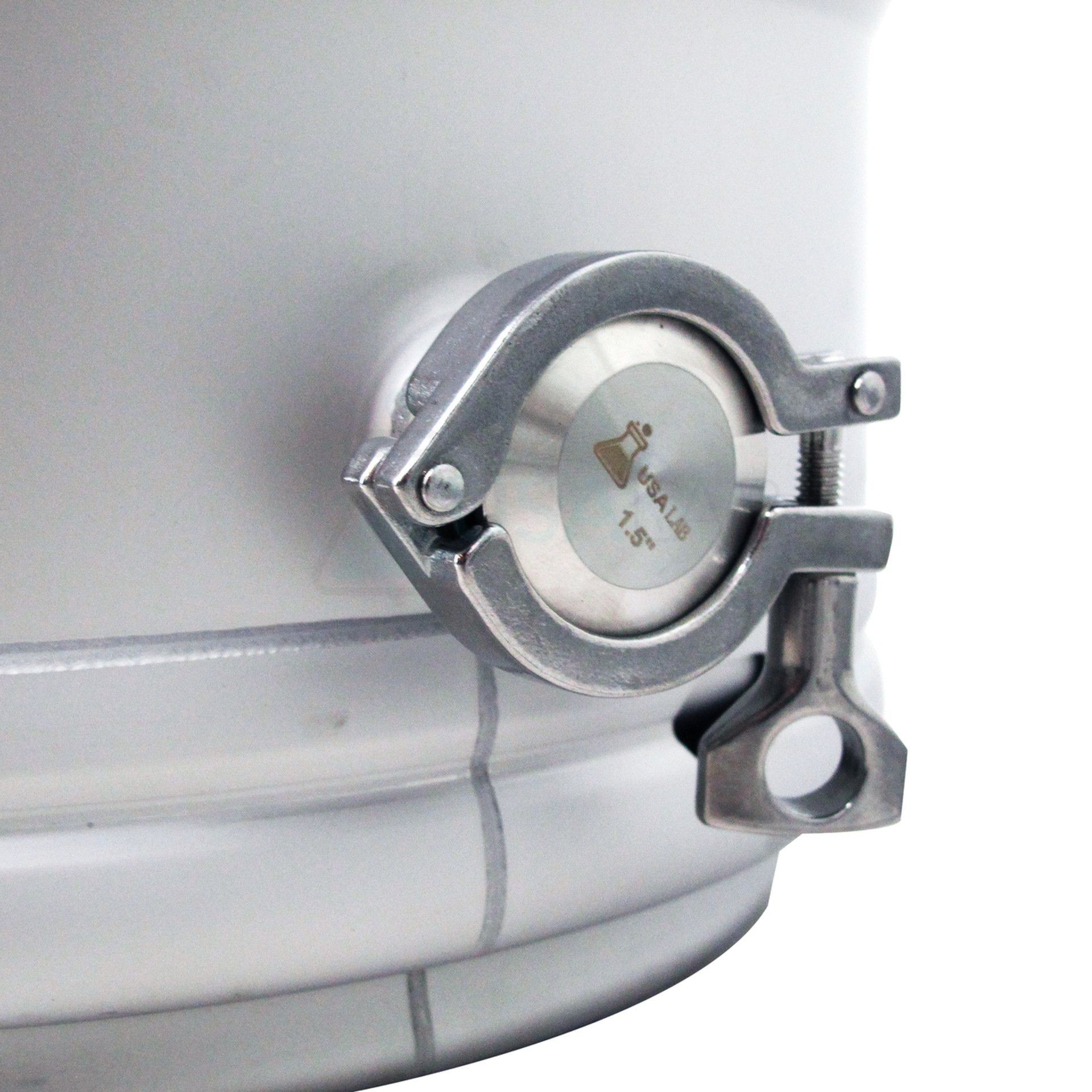

Drain Connection |
1.5" Tri-Clamp |
|
Exterior Dimensions |
16" L x 16" W x 24" H |
|
Inner Diameter |
15" |
|
Inner Body Height |
20.5" |
|
6" TC to Bottom |
22" |
|
2" TC to Bottom |
24" |
|
Weight |
34lbs |
|
50LKEG PACKING LIST |
|
|
50L Sanitary Keg |
1 pc |
|
1.5" Polycarbonate Sight Glass |
2 pcs |
|
1.5" Solid End Cap |
1 pc |
|
6" Buna-N Gasket |
1 pc |
|
1.5" Buna-N Gasket |
3 pcs |
|
6" Standard Pressure Tri-Clamp |
1 pc |
|
1.5" Standard Pressure Tri-Clamp |
3 pcs |
|

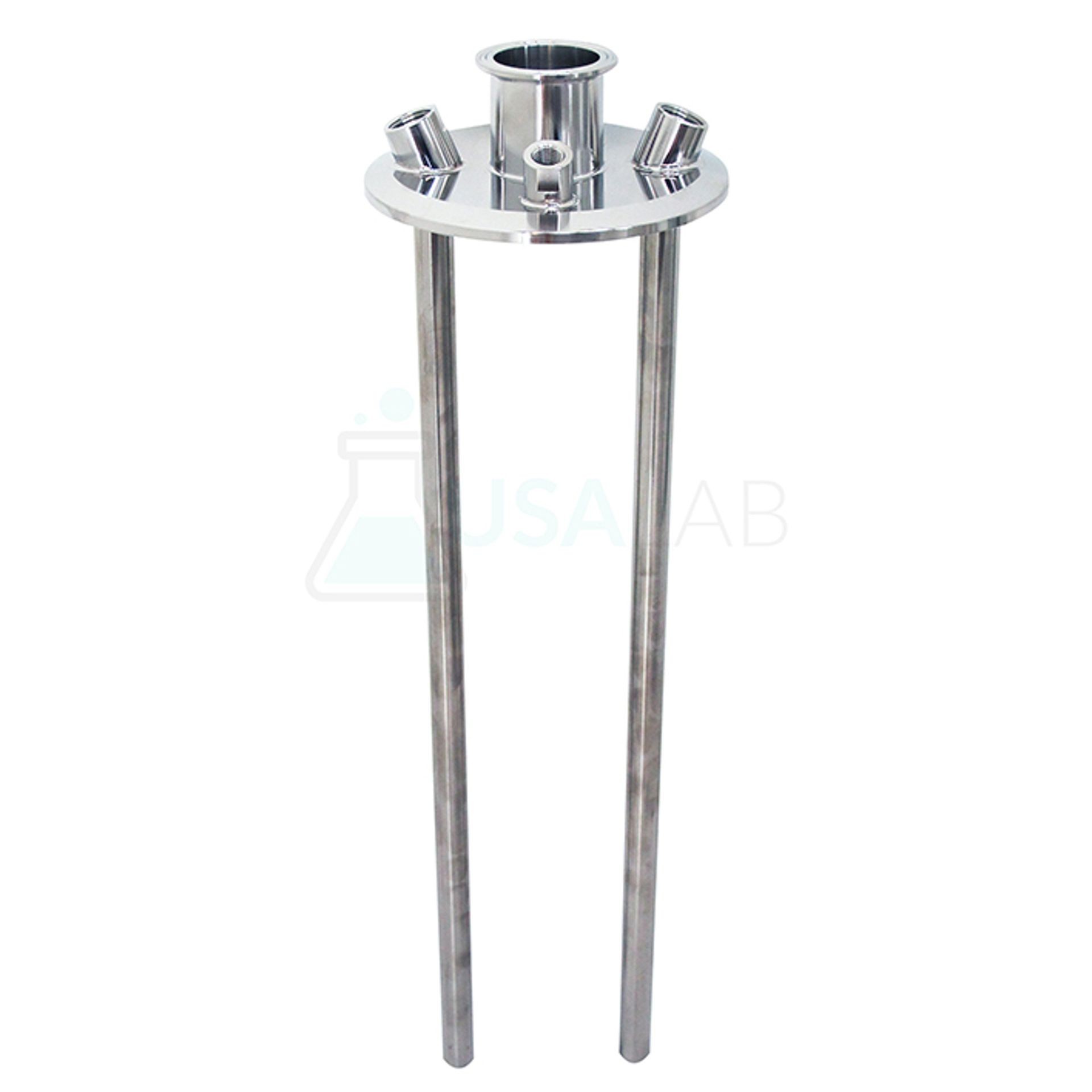

6" Lid with 2x 1/2" FNPT w/ Dip Tube, |
1 pc |
