USA Lab Hotplate Stirrer - 3L - TUV Certified
Out of stock
FULFILLMENT OPTIONS

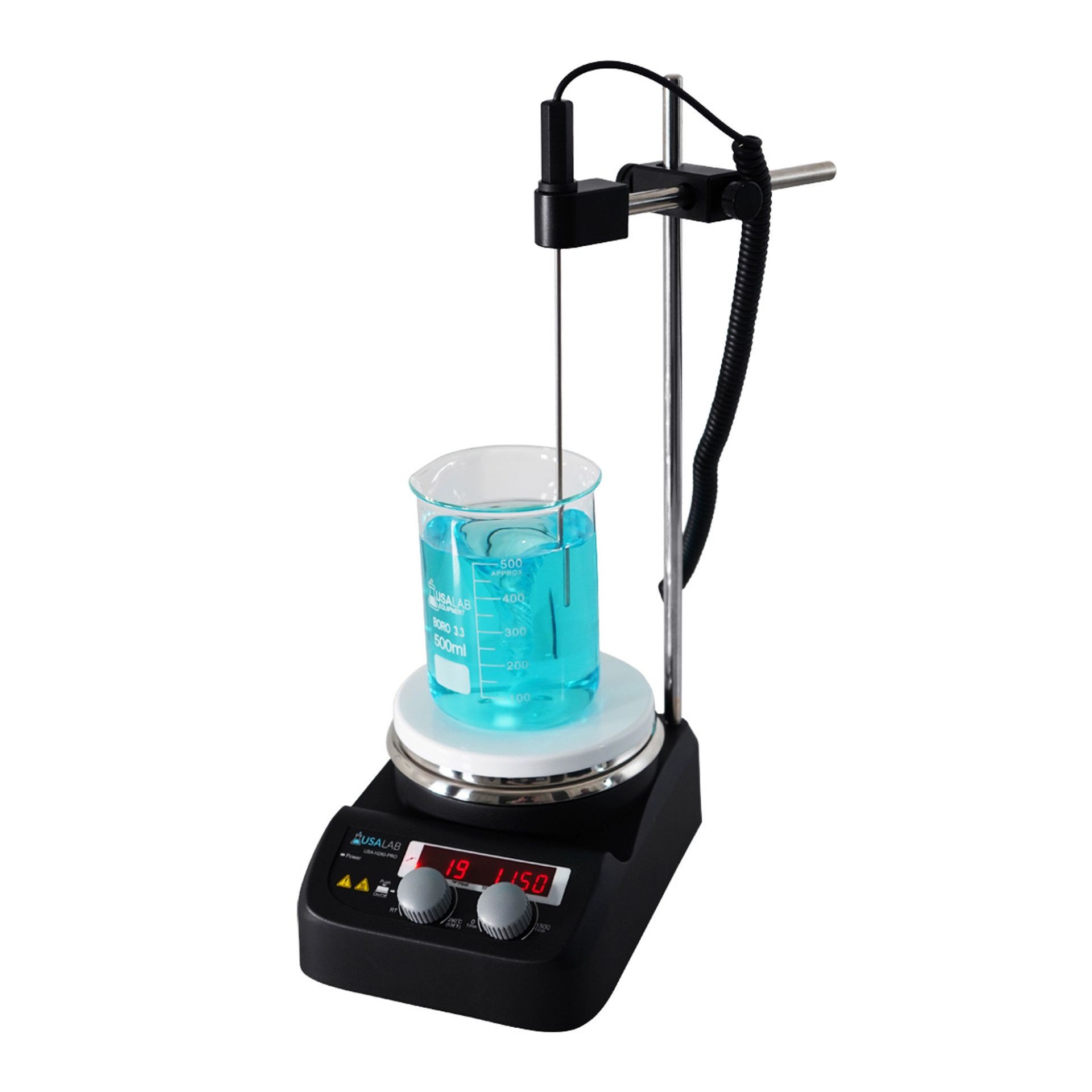

USA Lab H280 – Hotplate Stirrer Combo
The USA Lab H280 hotplate stirrer combo offers an affordable solution for everyday laboratory needs. This LED digital unit is designed for applications requiring temperatures up to 280°C. Compact and versatile, it functions as a hotplate, a stirrer, or both at the same time.
|
Features |
|
Digital temperature control with maximum temperature up to 280°C |
|
Digital speed control with maximum speed up to 1500rpm |
|
Stainless steel work plate with ceramic coating provides great chemical resistant performance |
|
External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.5°C |
|
LED display shows temperature and speed |
|
The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off |
|
TUV Certified to UL Standards |
|
Specifications |
|
|
Work plate dimensions |
135 x 135mm | 5" x 5" |
|
Work plate material |
Stainless steel cover with ceramic |
|
Motor type |
Brushless DC motor |
|
Power input |
515W |
|
Heating output |
500W |
|
Voltage |
100 - 120V 60Hz |
|
Stirring positions |
1 |
|
Max. stirring quantity [H2O] |
3L |
|
Max. magnetic bar [length] |
50mm |
|
Speed range |
200-1500rpm |
|
Display type |
LED |
|
Speed display resolution |
±1rpm |
|
Heating temperature range |
Ambient - 280°C | Increment 1°C |
|
Control accuracy of work plate |
±1°C(<100°C) | ±1%(>100°C) |
|
Over heat protection |
320°C |
|
Temperature display accuracy |
±1°C |
|
External temperature sensor |
PT1000 (accuracy ±0.5°C) |
|
"Hot" warning |
50°C |
|
Protection class |
IP21 |
|
Dimension [W x D x H] |
150×260×80mm | 6 x 10.2 x 3.14 " |
|
Weight |
1.8kg | 4lbs |
|
Permissible ambient temperature |
5 - 40°C |
