USA Lab 110V 5L -10°C to 99°C Magnetic Recirculating Heater Chiller HC-5/10
In stock
FULFILLMENT OPTIONS
USA Lab HC-5/10 – Heater Chiller (-10°C to 99°C, 110V)
Looking for a recirculating heater chiller that runs quietly while still delivering strong performance? The USA Lab HC-5/10 is designed for efficiency, offering both high and low temperature control with a range of -10°C to 99°C. Built to handle demanding lab applications, this 110V heater chiller delivers an impressive flow rate of 30 liters per minute, making it a reliable workhorse in any setup.
This model is an excellent companion for rotary evaporators and short path distillation systems, providing steady and precise heating and cooling support.
*Notice*
Not intended for continuous 24-hour operation; maximum recommended runtime is 16 hours.
|
HC510 Specifications |
|
|
Model |
HC-5/10 |
|
Reservoir Capacity |
5L |
|
Reservoir Dimensions: |
8" x 8" |
|
Cooling Range |
-10°C to 38.5°C |
|
Heating Range |
-10°C to 99°C |
|
Power Requirements |
110-120V 50-60Hz 30A Single Phase |
|
Plug |

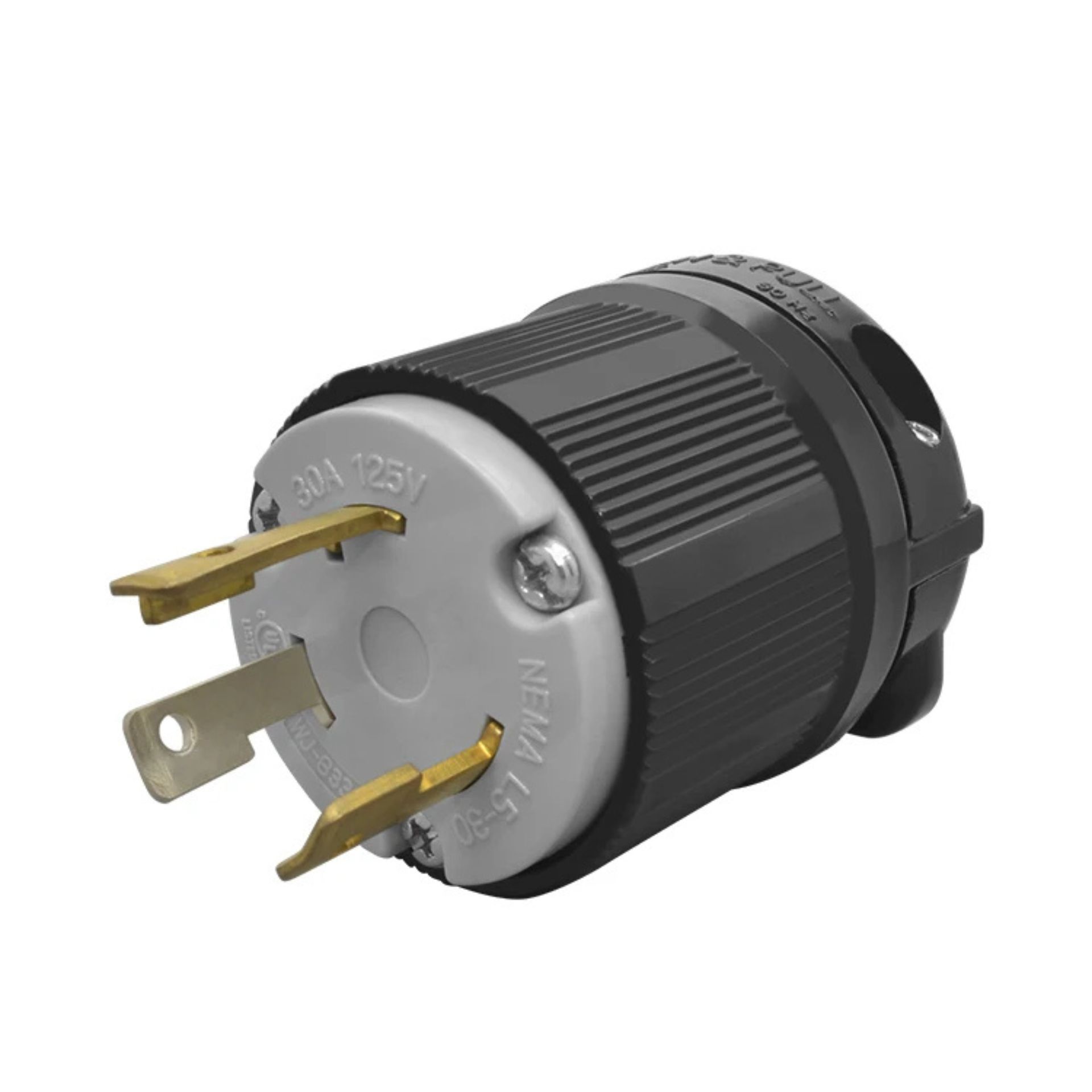

5-30P plug, cannot be modified |
|
Refrigerating BTUs |
4,500BTU - 1,000BTU |
|
Heating Element Wattage |
1000W |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
0.5°C |
|
Pump Flow |
30L/Min |
|
Pump Pressure |
2.2bar Lift/height: 4m/12ft |
|
Barb Size |
1/2" |
|
Refrigerant |
R-404A |
|
Dimensions |
19" x 14" x 29" |
|
Weight |
100lbs |
|
HC510 Packing List |
|
|
USA Lab HC-5/10 Heater Chiller |
1PC |
|
19" Metal Rod Stand |
1PC |
|
Boss Clamp |
1PC |
|
Bent 4 Prong Clamp |
1PC |
|
1/2" Insulated Tubing |
10ft |
|
1/2" Barbed Valve |
1PC |
|
PTFE Sealing Tape |
1PC |
