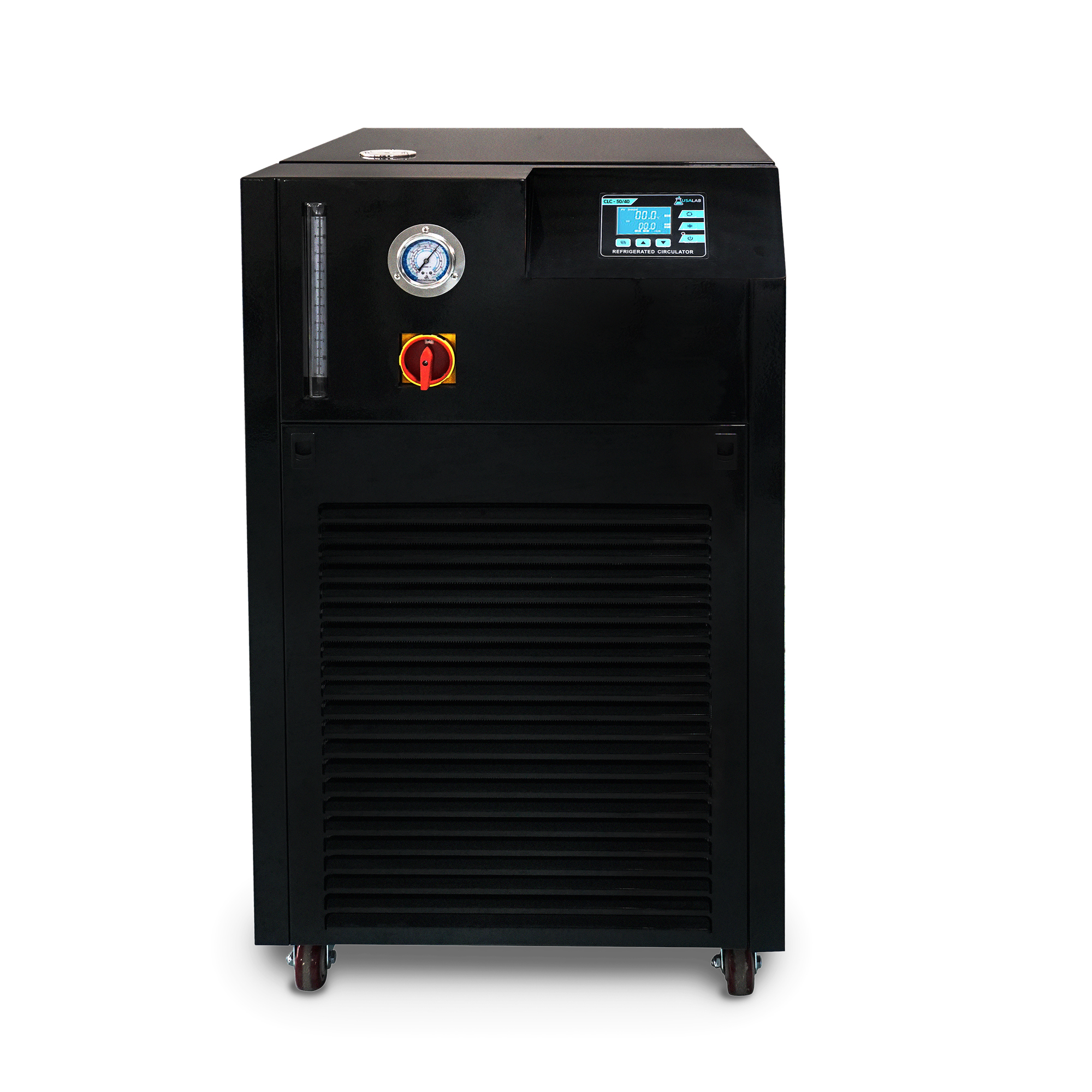

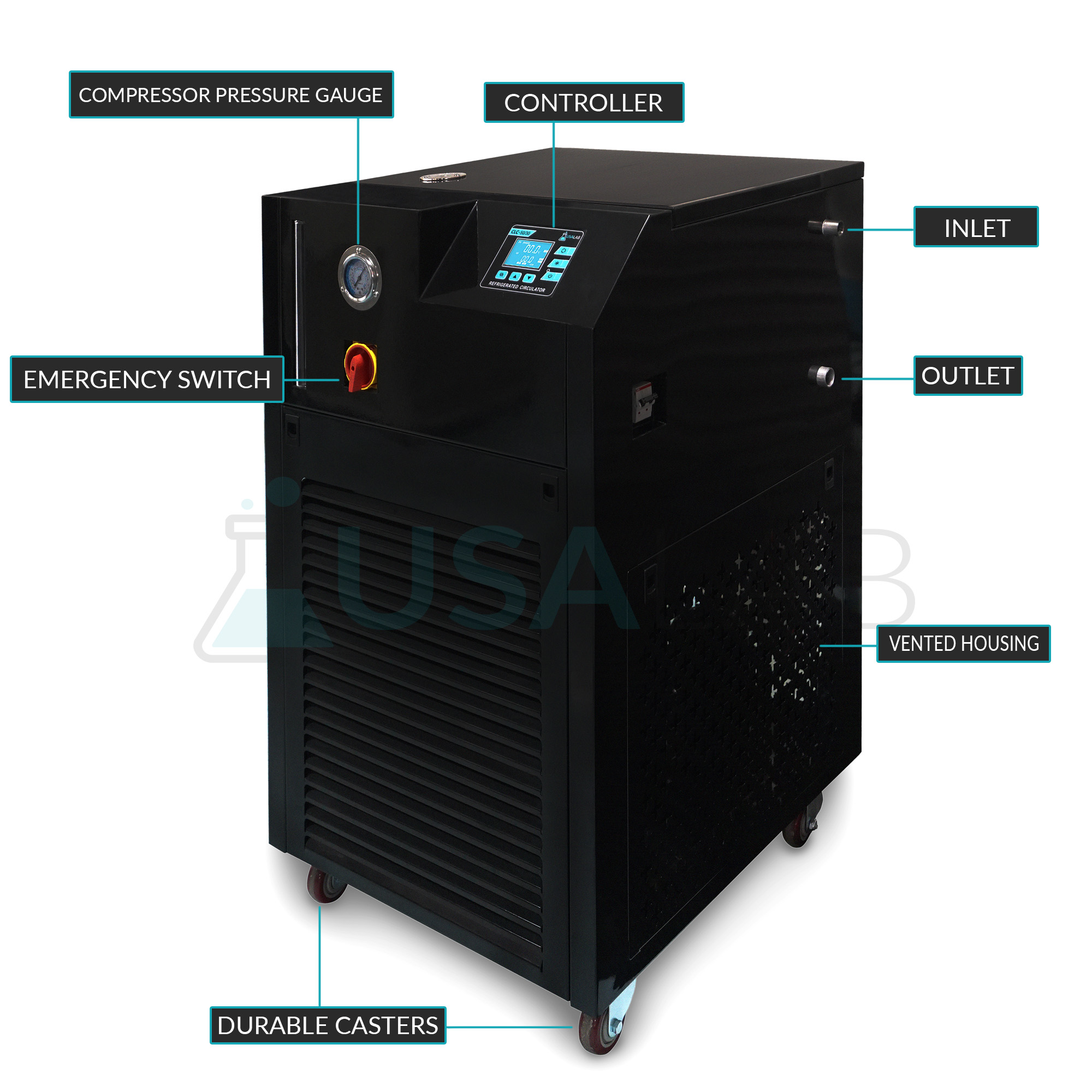

USA Lab -40ºC 50L Closed Loop Recirculating Chiller CLC-50/40 30L/Min
In stock
FULFILLMENT OPTIONS
USA Lab CLC Series – Mechanically Cooled High-Performance Chillers
The CLC Series is powered by a high-efficiency scroll compressor that provides strong, reliable cooling. Unlike passive systems, these chillers use inline heat exchangers to cool the fluid directly, ensuring faster thermal transfer, reduced energy loss, and greater ease of operation.
Much like the UC Series, the CLC models are engineered to handle your most demanding laboratory applications and are compatible with a wide range of equipment. For more details about our latest line of high-performance chillers, please reach out to our team.
*Notice*
Not compatible with 208V power input. Acceptable operating range: 219V–253V.
Not designed for continuous 24-hour operation; maximum recommended runtime is 16 hours.
In certain setups, an external bypass may be required.
Each unit is fully tested before shipping. Please allow a lead time of 1–3 business days.
|
CLC-50/40 Specifications |
||
|
Model |
CLC-50/40 |
|
|
Usage Temperature Range |
-40°C to Ambient (40°C/70°F) |
|
|
Environment Temperature |
5°C to 40°C |
|
|
Environment Humidity |
≤70％RH |
|
|
Power Supply |
Single phase 220V-240V/60HZ |
|
|
Safety Protection |
Delay, overcurrent, overheating, phase sequence, phase loss protection |
|
|
Display |
LCD display, key operation |
|
|
Temperature Control Accuracy |
±0.1°C |
|
|
Sensor |
PT100 |
|
|
Total power |
6000W |
|
|
Compressor |
Specification |
5HP |
|
Quantity |
1 |
|
|
Power |
5640W |
|
|
Cooling Capacity |
7569W-3640W |
|
|
Circulation Pump |
Power |
100W |
|
Lift |
4-6M |
|
|
Flow |
20-40L/min |
|
|
Pressure [H20] |
5.2 - 7.8 psi |
|
|
Air-Cooling Condenser |
Power |
260W |
|
Heating Exchange Area |
21.2m² |
|
|
Air Volume |
3400m³/h |
|
|
Refrigerant |
R404A |
|
|
Plate-Type Heat Exchanger |
Heating exchange area 1.46m² |
|
|
Equipment Material |
Cold plate spray, anti-corrosion |
|
|
Storage Tank Volume |
~11L (300mm x 300mm x 120mm) |
|
|
Outer Circulation Interface |
2x 1/2" NPT - right side facing |
|
|
Overall Dimension (W*D*H) |
670mm x 730mm x 1100mm |
|
|
Packing Dimension |
840mm x 790mm x 1290mm wooden package 0.86m³ |
|
|
Net Weight |
124KG / 280lbs |
|
|
Packing Weight |
178KG / 400lbs |
|
