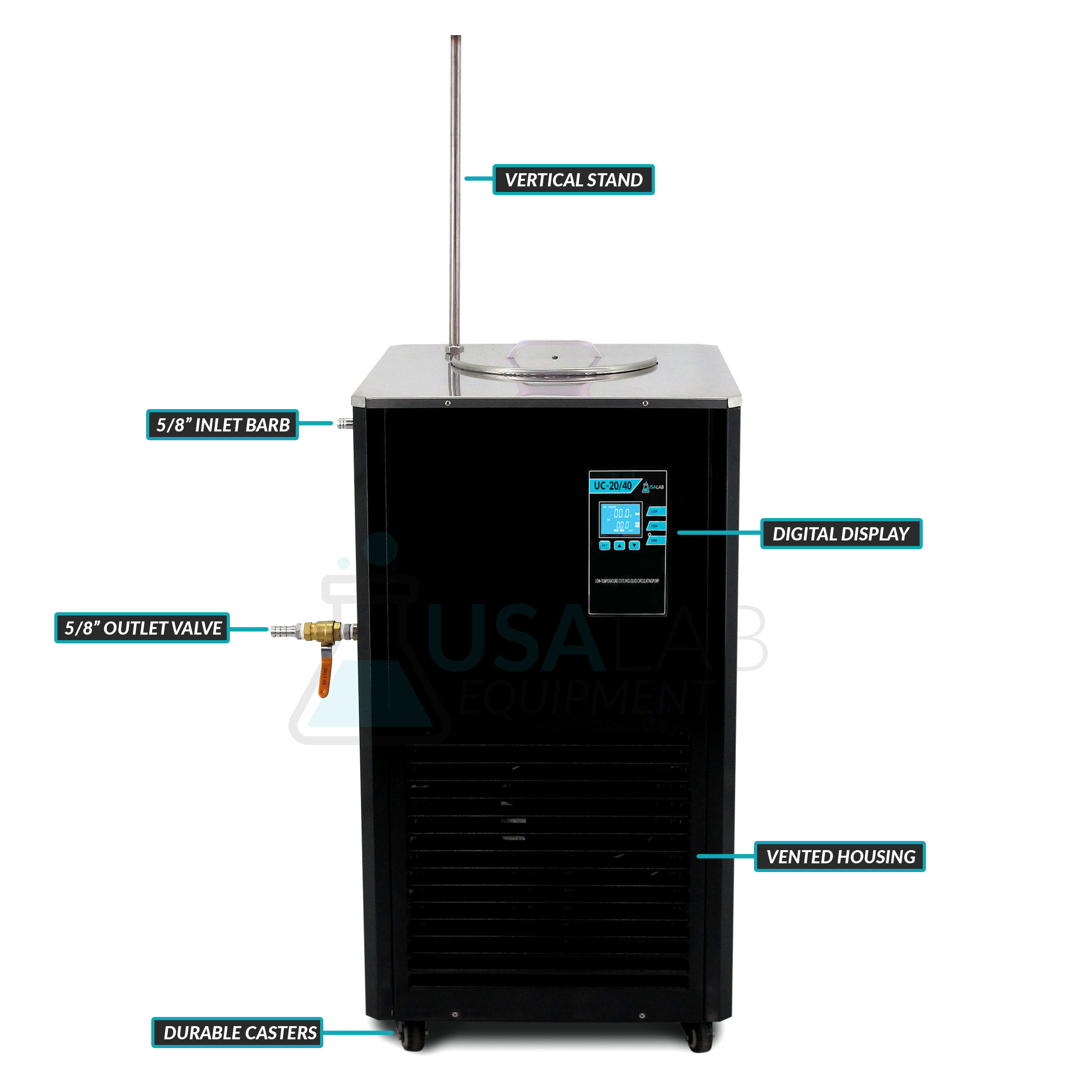

USA Lab UC-20/40 – Recirculating Chiller (-40°C, 20L Reservoir)
The USA Lab UC-20/40 is a high-performance -40°C recirculating chiller equipped with a 20-liter reservoir. Built for laboratory use, this system is an excellent choice for supporting vacuum systems, jacketed reactors, rotary evaporators, chromatography columns, solvent tanks, and a wide range of analytical instruments.
Reliable and user-friendly, the UC-20/40 delivers strong performance with quiet operation. Its robust pump ensures steady flow rates, meeting the demands of intensive lab applications while maintaining efficiency and consistency.
*Notice*

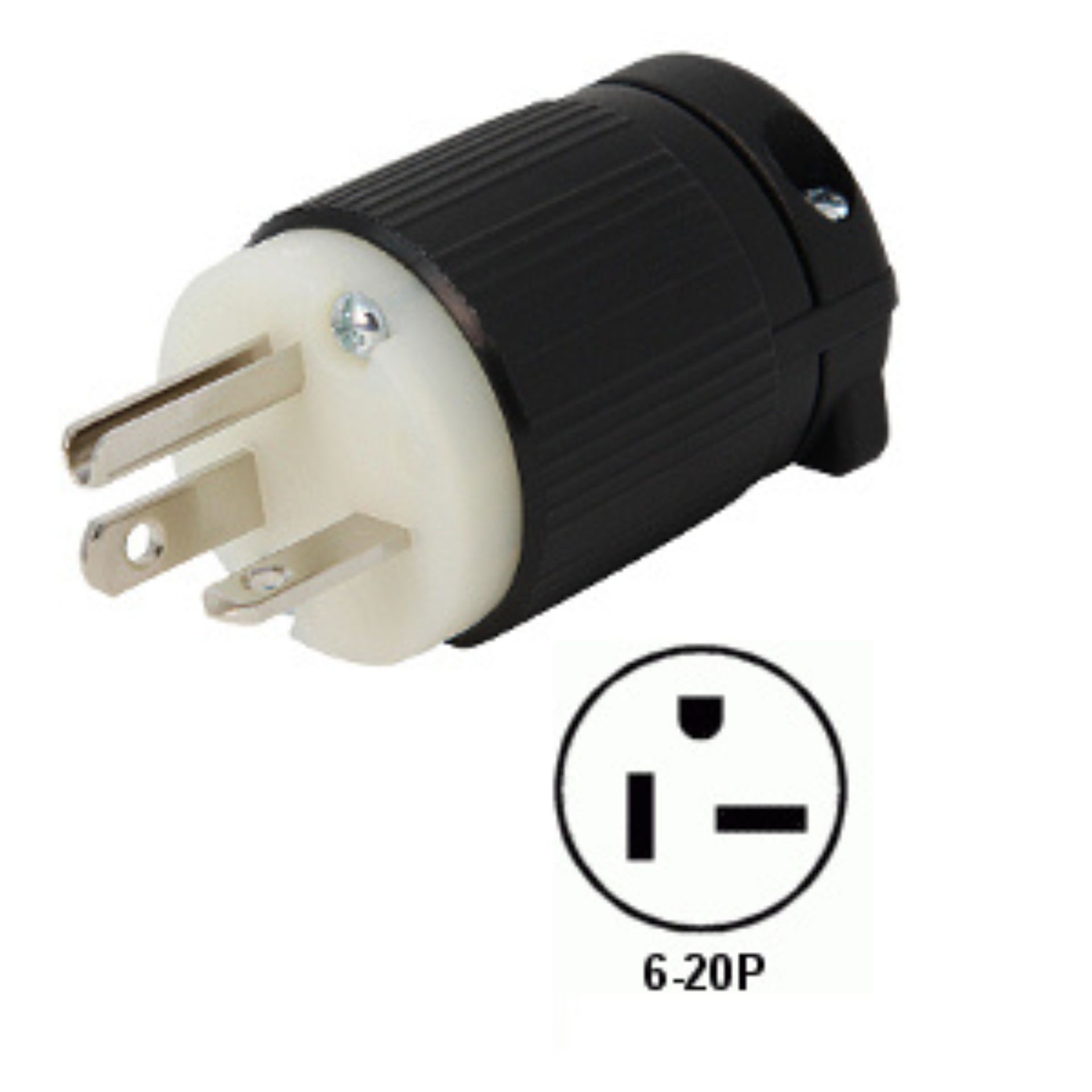

Not compatible with 208V power input. Acceptable voltage range: 219V–253V.
Not designed for continuous 24-hour operation; maximum runtime is 16 hours.
|
UC-20/40 Specifications |
|
|
Model |
UC-2040 |
|
Reservoir Capacity |
20L |
|
Reservoir Dimensions |
11.8" x 11.8" |
|
Temperature Range |
Room Temperature to -40°C / -40°F |
|
Power Requirements |
220-240V 60Hz 16A 3500W Single Phase |
|
Refrigerating BTUs |
3,300BTU - 12,400BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
42L/Min |
|
Pump Pressure (lift/height) |
2.5 psi @ 3.9ft - 8.8 psi @ 18.7ft |
|
Barb Size |
5/8" |
|
Refrigerant |
R404 |
|
Dimensions |
24.8" x 20.8" x 43.3" |
|
Weight |
164lbs |
|
UC-20/40 Packing List |
|
|
USA Lab UC-20/40 Chiller |
1 PC |
|
5/8" Insulated Tubing |
11ft |
|
5/8" barbed Valve |
1 PC |
|
PTFE Sealing Tape |
1 PC |
-40°C Temperatures are tested under empty load.
